الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

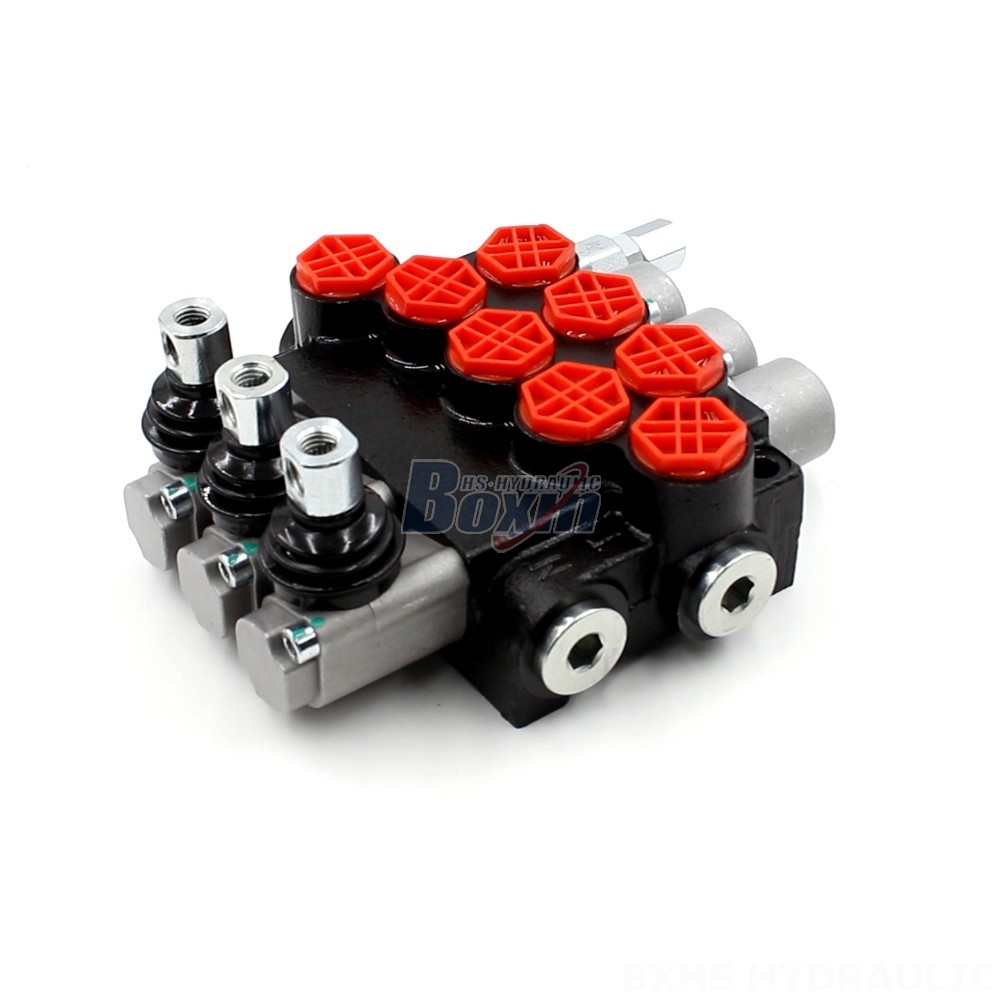

The P40-G12 Series Hydraulic Monoblock Directional Valve is a high-performance, versatile valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 3-section monoblock structure with a rated flow of 40 L/min and a maximum pressure of 250 bar. It's perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
| سلسلة P40 صمام اتجاهي أحادي الكتلة بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم, ملف لولبي وذراع تحكم, يدوي وذراع تحكم, ملف لولبي وكابل |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 250 بار (3600 رطل لكل بوصة مربعة) |
| منفذ الدخول | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| منفذ الخروج | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| حجم المنفذ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-G12 Series Hydraulic Monoblock Directional Valve is a robust and reliable solution for controlling hydraulic systems in various applications. It features a 3-section monoblock structure, offering superior strength and durability. The valve is equipped with a 3-spool design and has a rated flow of 40 L/min, making it suitable for various demanding applications. It can withstand pressures up to 250 bar, ensuring efficient operation in high-pressure environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve can handle diverse operating conditions. This valve is specifically designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a range of machines like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
