الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

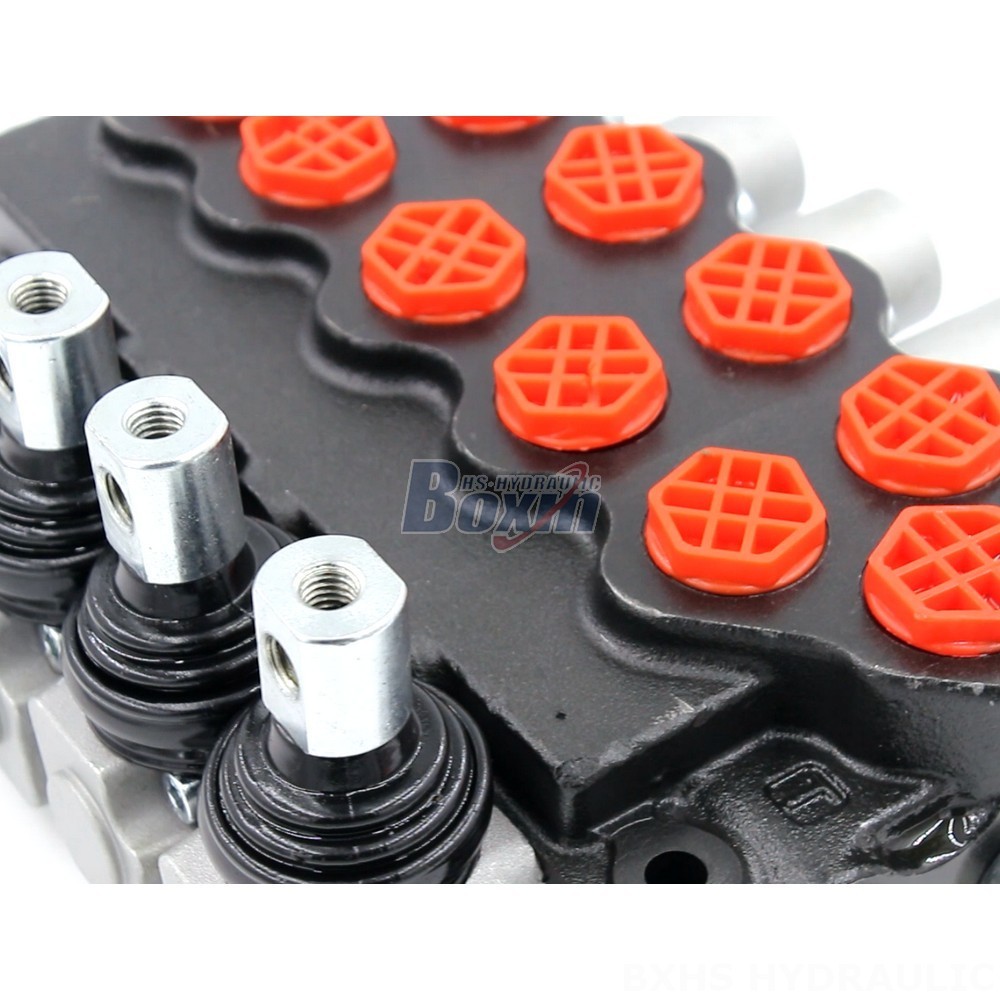

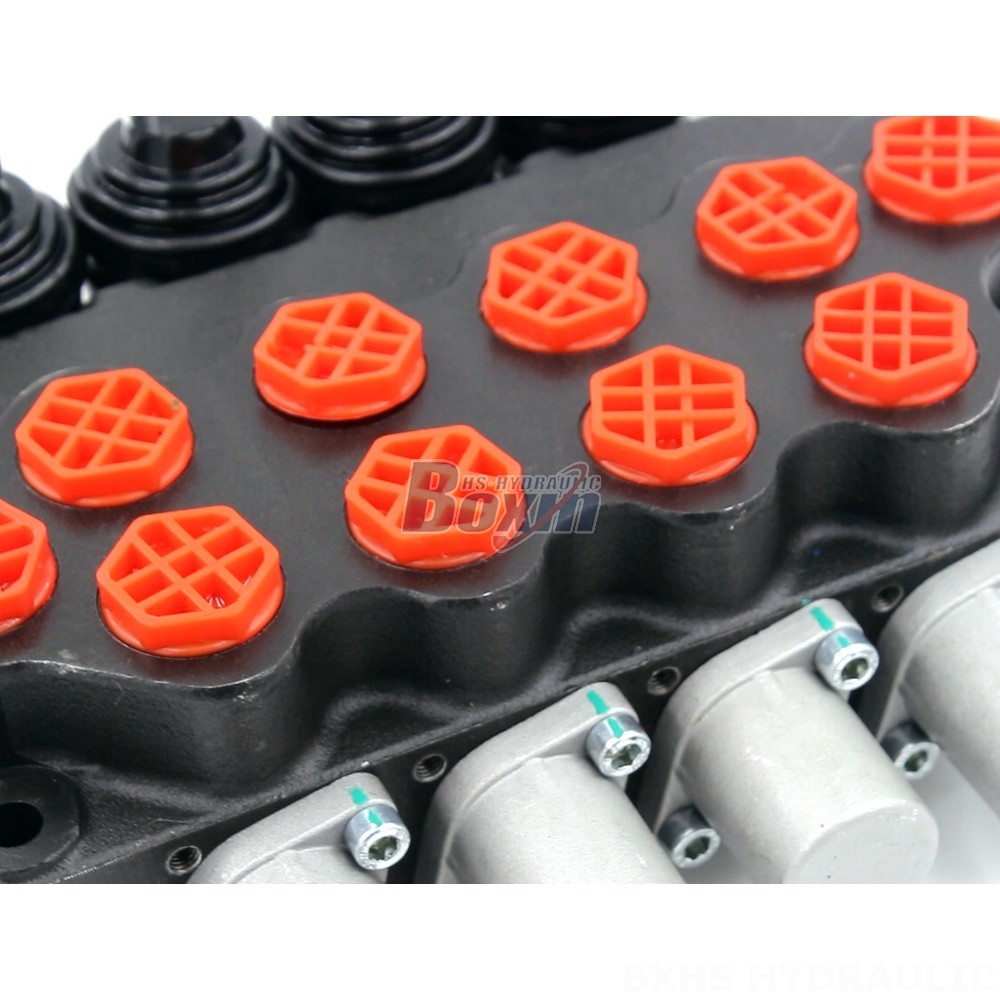

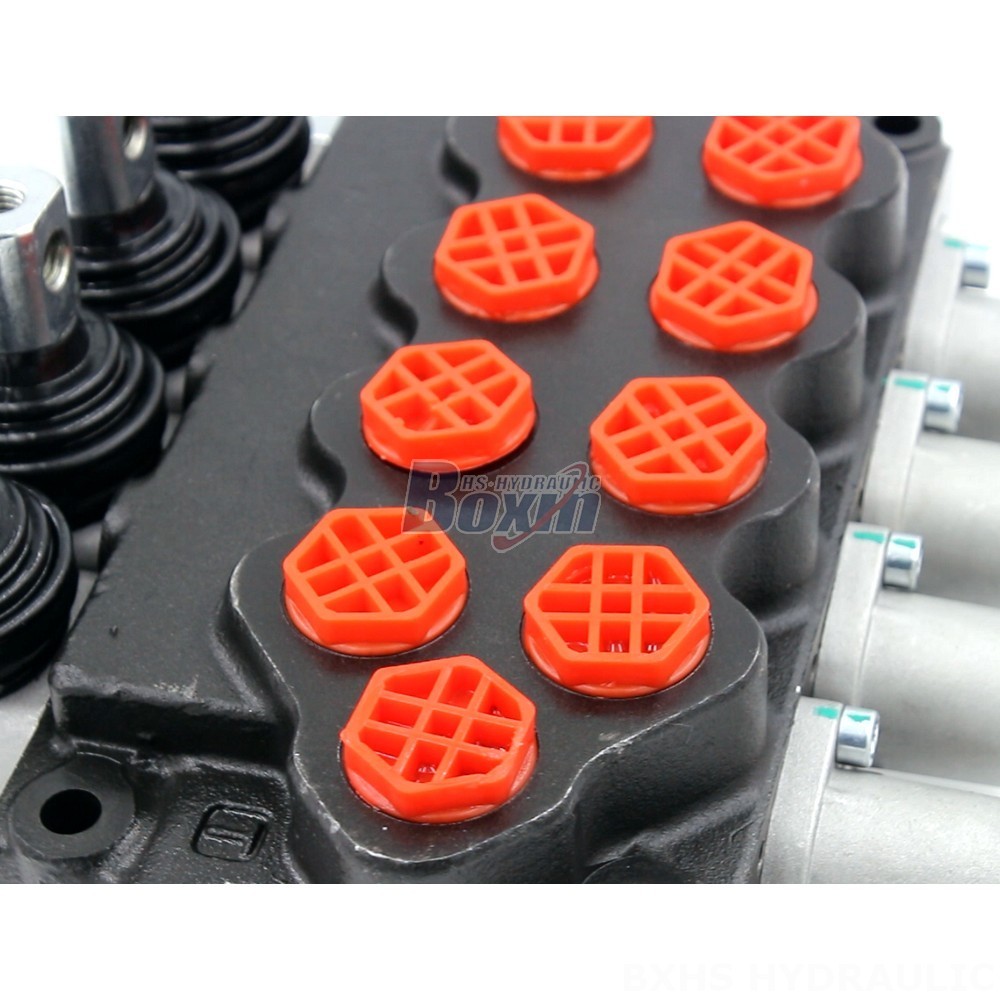

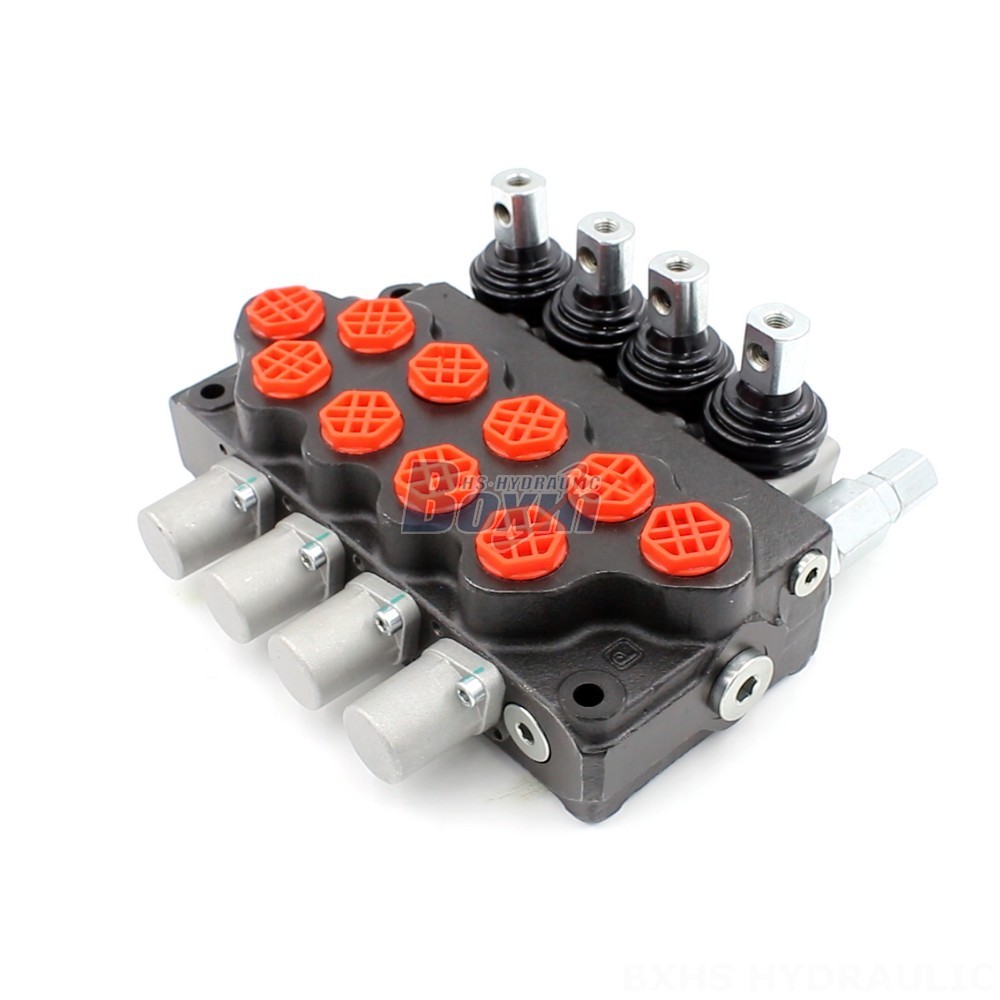

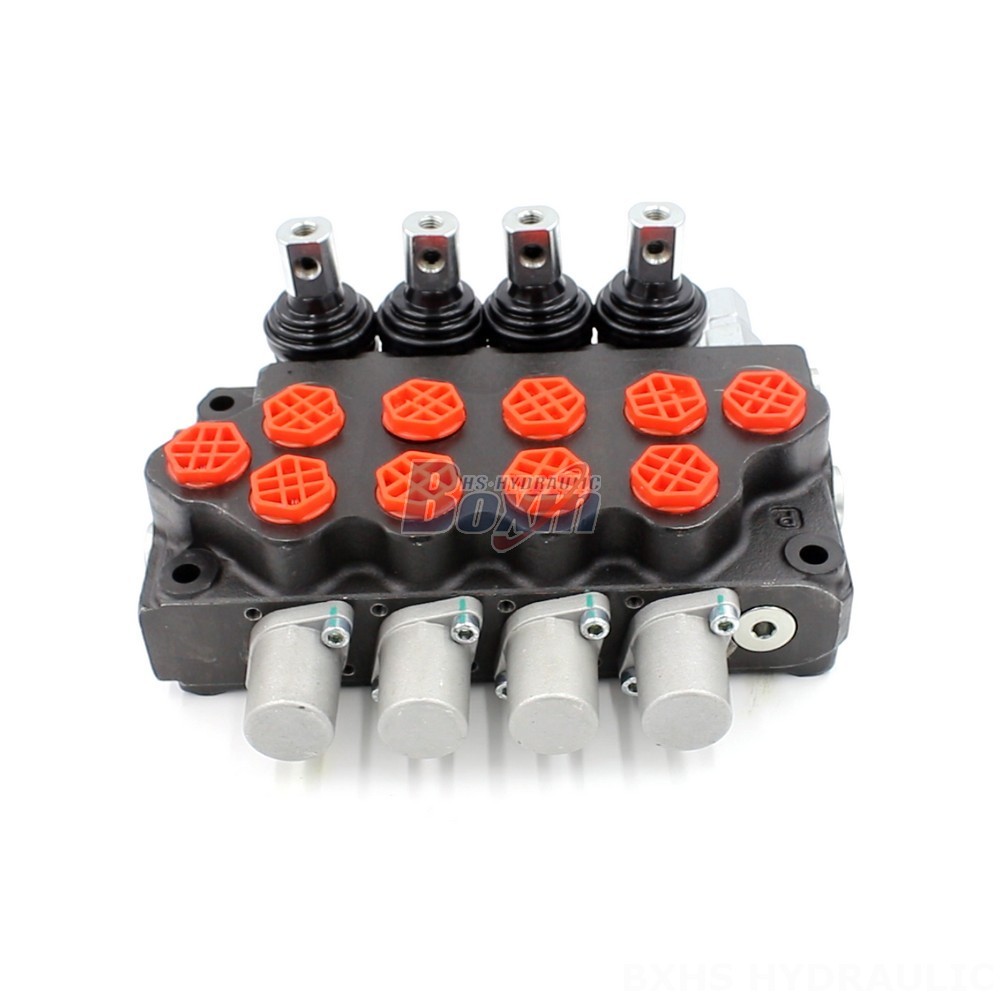

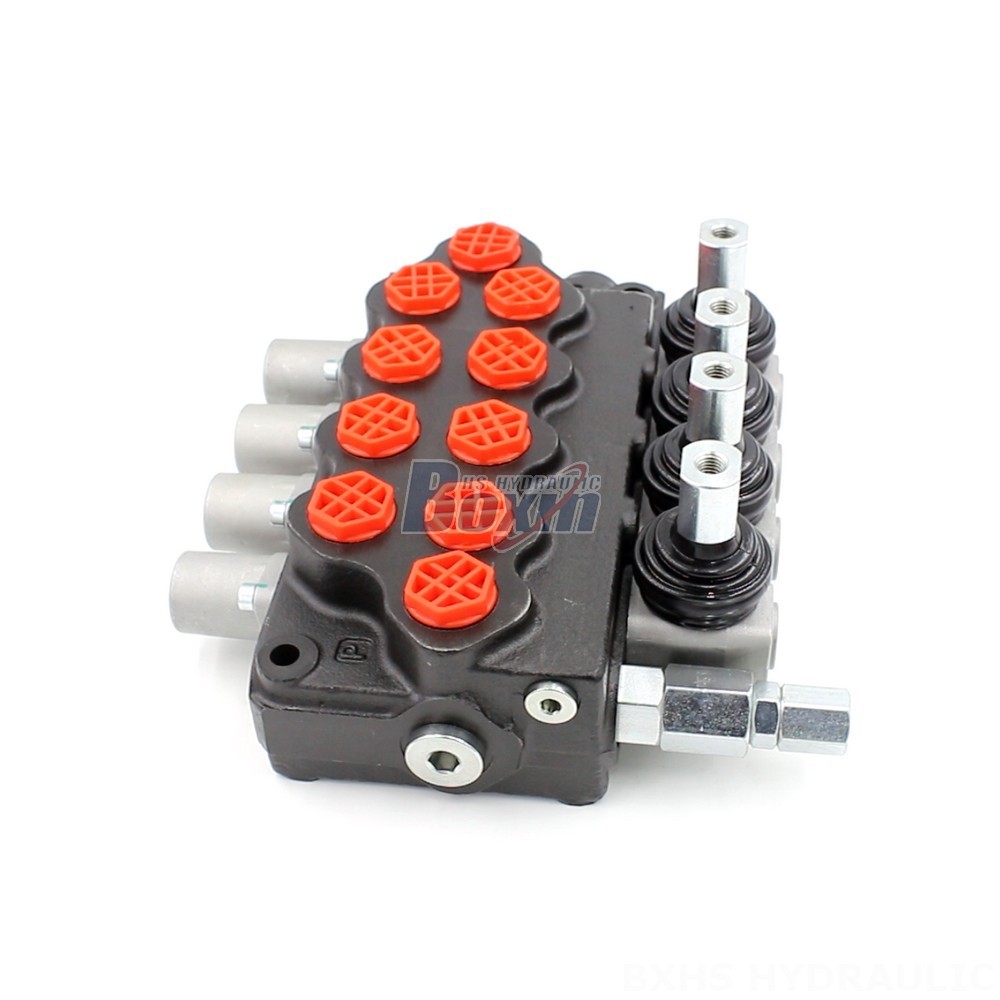

The SD5-G38 Hydraulic Two Way Valve is a high-performance, manual control valve designed for use in a variety of construction, material handling, and agricultural applications. This monoblock valve features a 4-section design, a 40 L/min rated flow, and a maximum pressure of 305 bar. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
| سجل SD5 صمام اتجاهي أحادي الكتلة بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +60 درجة مئوية (-40 درجة فهرنهايت إلى +140 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 305 بار (4400 رطل لكل بوصة مربعة) |
| منفذ الدخول | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| منفذ الخروج | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| حجم المنفذ | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Hydraulic Two Way Valve is a robust and reliable valve that is ideal for demanding applications. It is manufactured from high-quality materials and is designed to withstand a wide range of operating conditions. The valve features a manual control method, a 4-section design, and a monoblock structure. It has a rated flow of 40 L/min and a maximum pressure of 305 bar. The operating viscosity range is 15-75 mm²/s and the ambient temperature range is -40°C to +60°C. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and customization options for this product.
