الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

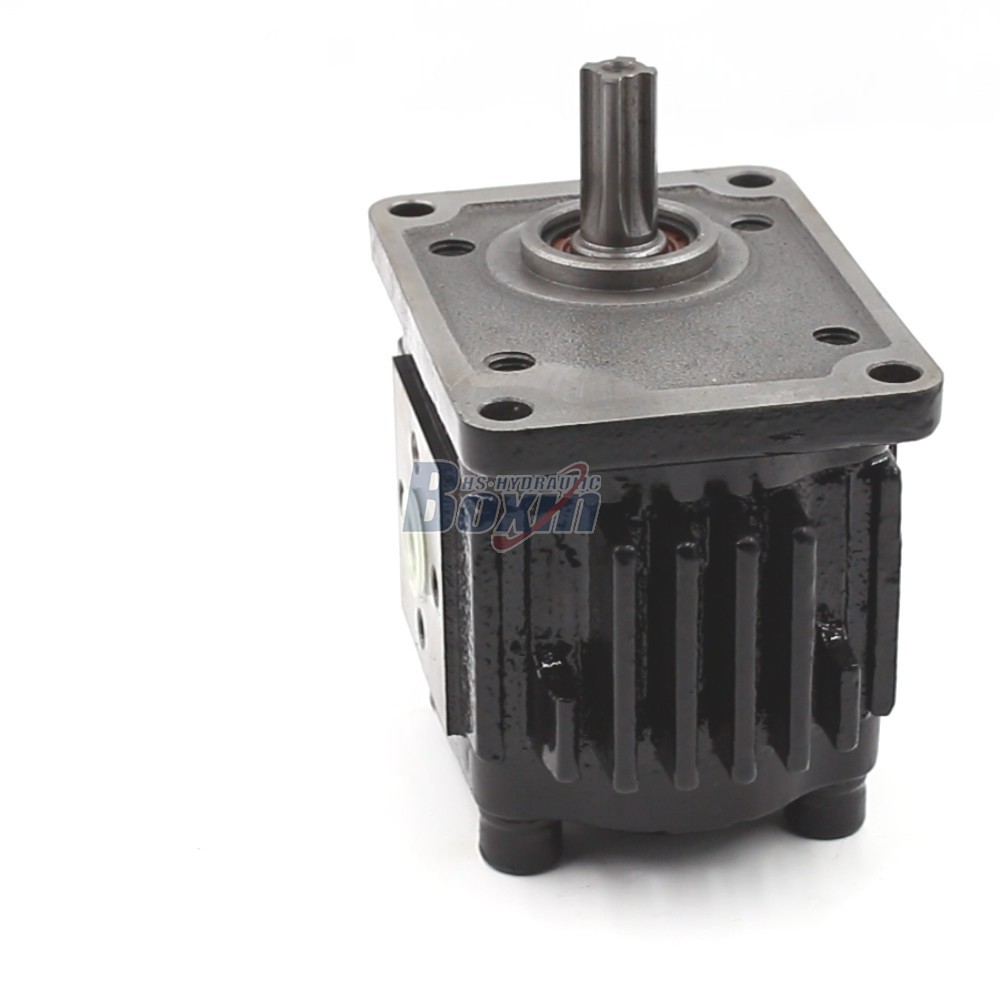

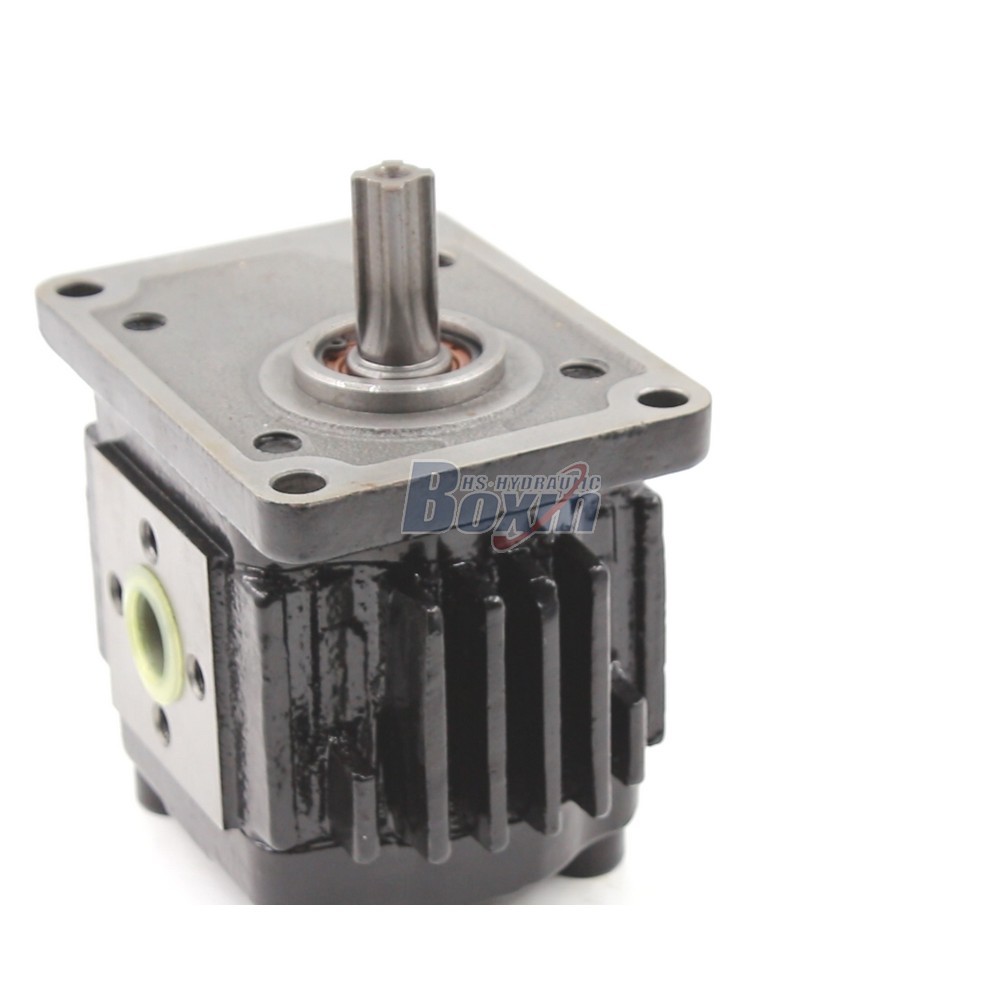

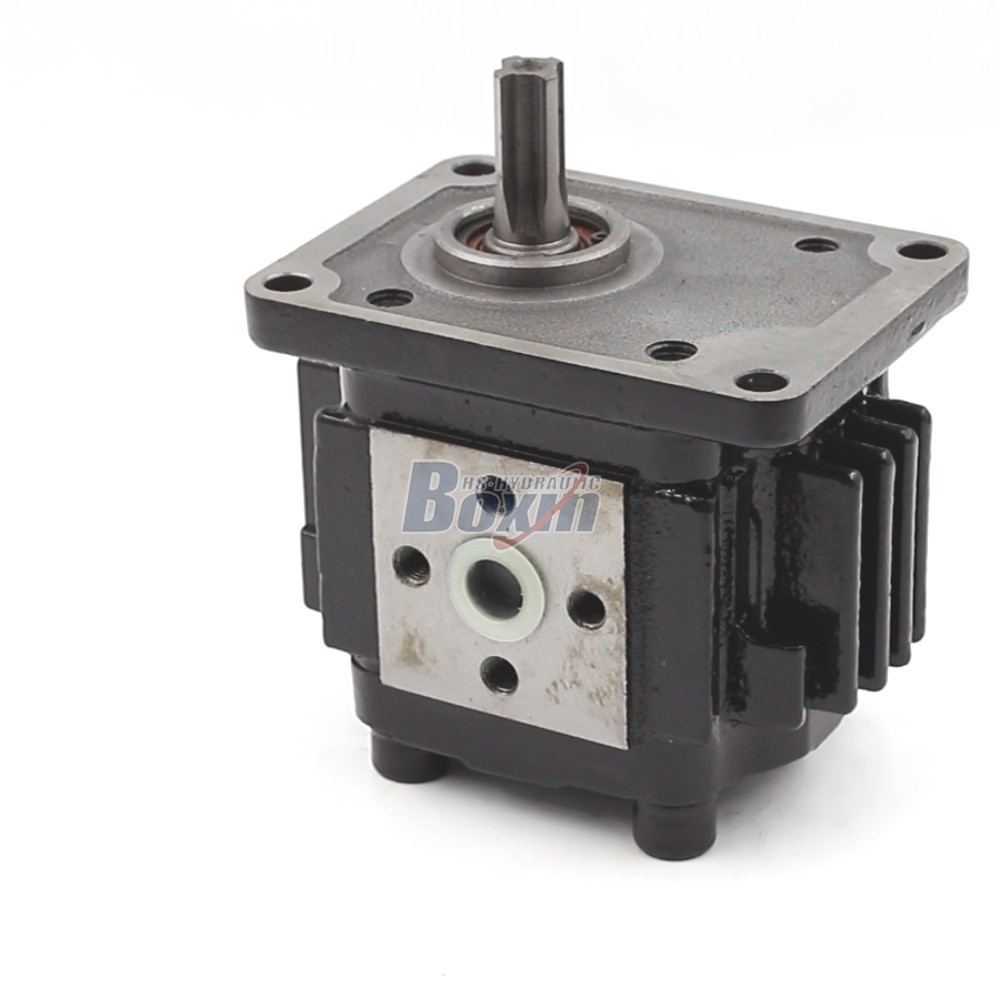

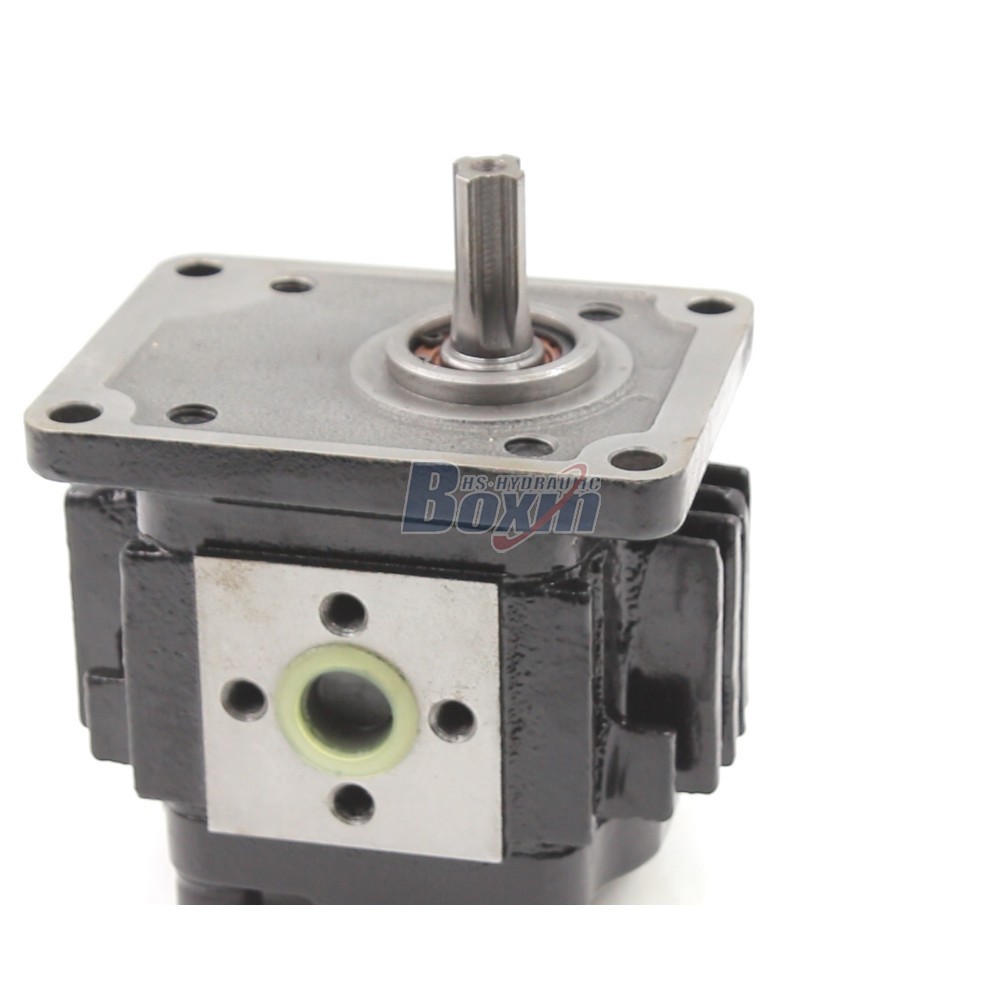

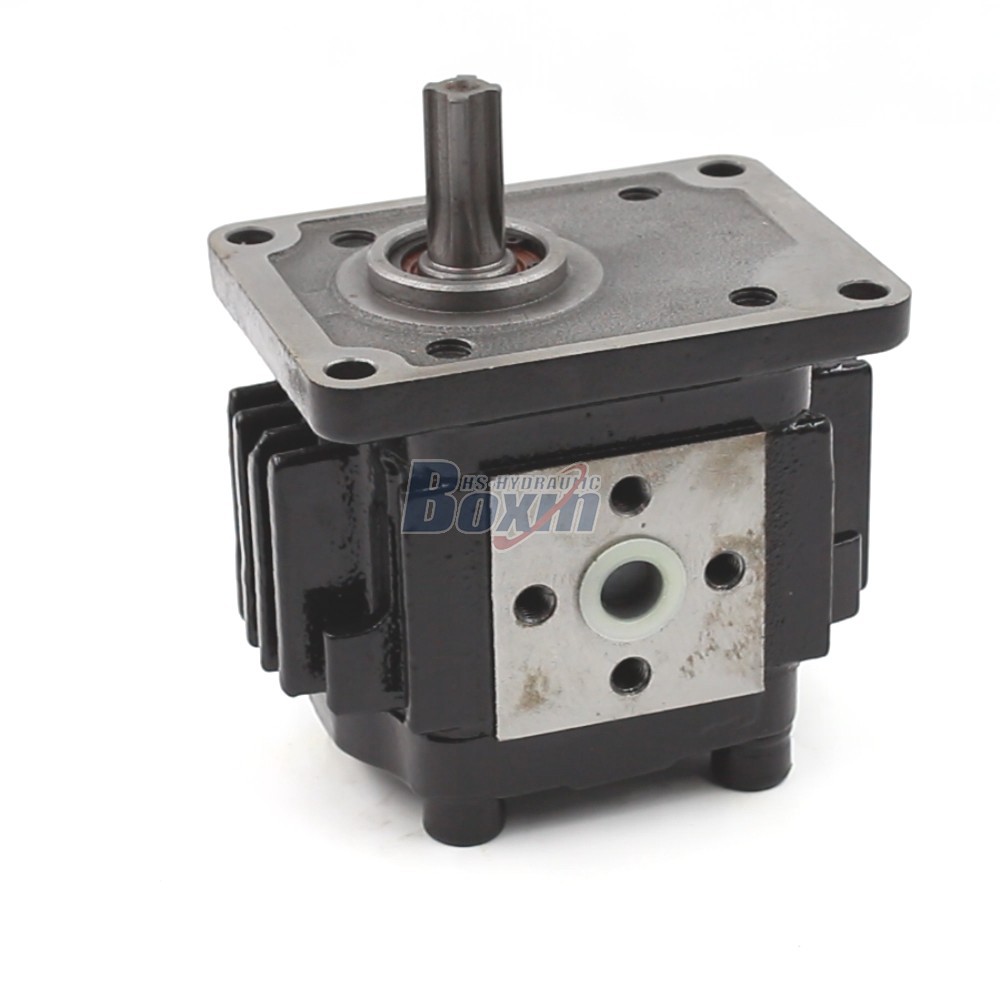

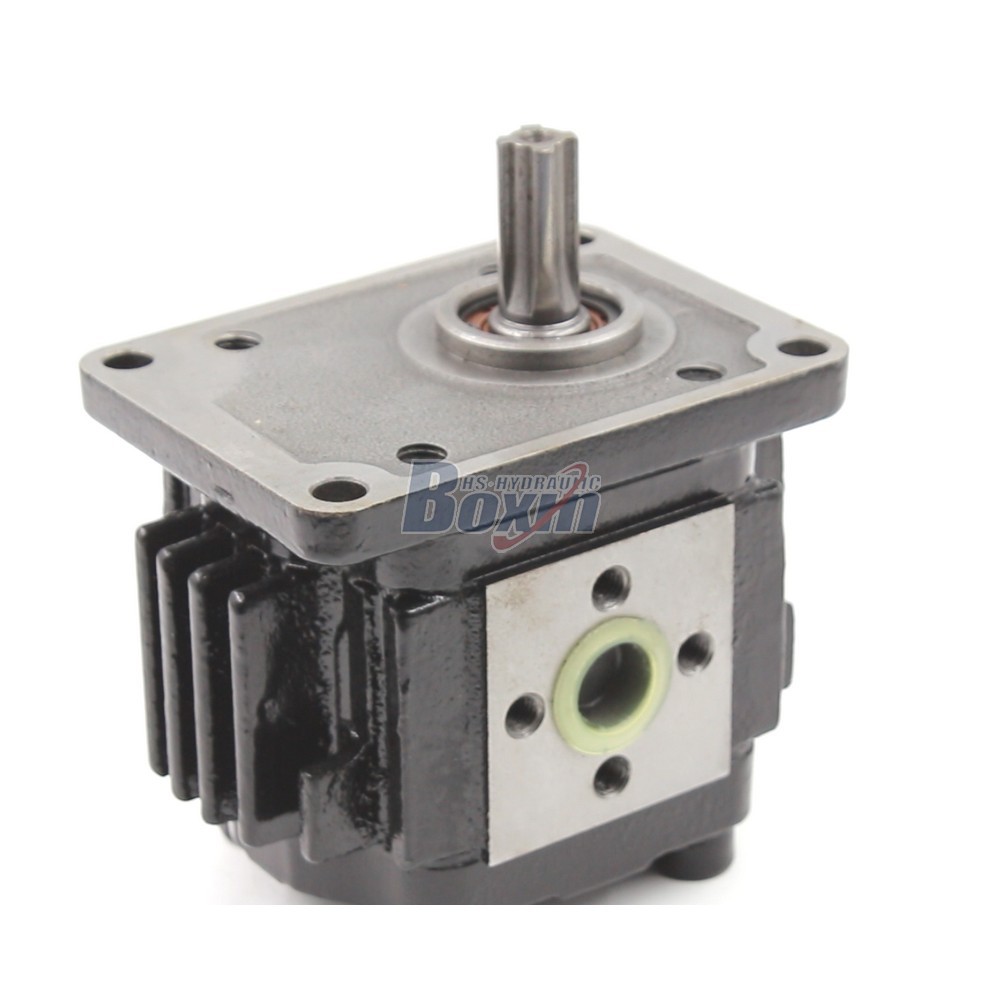

This industrial hydraulic gear pump is designed for high performance and heavy duty applications. It features a robust construction with a displacement of 16 cc/rev and a rated pressure of 18 MPa (2610 psi), ensuring reliable operation in demanding environments.
| سلسلة CBHS-F3 مضخة التروس الهيدروليكية بارامترات | |
|---|---|
| الإزاحة | 10 سم مكعب/دورة, 20 سم مكعب/دورة, 16 سم مكعب/دورة, 14 سم مكعب/دورة, 6 سم مكعب/دورة |
| الضغط المقنن | 16 ميجا باسكال (2320 رطل لكل بوصة مربعة) |
| أقصى ضغط | 18 ميجا باسكال (2610 رطل لكل بوصة مربعة) |
| السرعة المقننة | 2000 دورة في الدقيقة |
| أقصى سرعة | 2200 دورة في الدقيقة |
| الدوران | يسار (عكس اتجاه عقارب الساعة), يمين (في اتجاه عقارب الساعة) |
| البنية | مضخة تروس خارجية |
| المادة | ألومنيوم |
| نوع العمود | مفتاح عادي |
| إصدار الحافة | حافة بيضاوية A |
Our Industrial Hydraulic Gear Pump is available in various displacements, including 50 cc/rev, 32 cc/rev, 45 cc/rev, and 63 cc/rev. It is designed to withstand a maximum pressure of 20 MPa (2900 psi) and can operate at speeds up to 2200 r/min. The pump features a robust cam plate type design and is available with both internal and external gear configurations. Constructed from durable aluminium, the pump comes with an A-oval flange and plain key shaft. This pump is ideal for a wide range of applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It is particularly suited for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer a complete range of services including manufacturing, OEM, ODM, private label, and customization to meet the specific requirements of our customers.
