الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

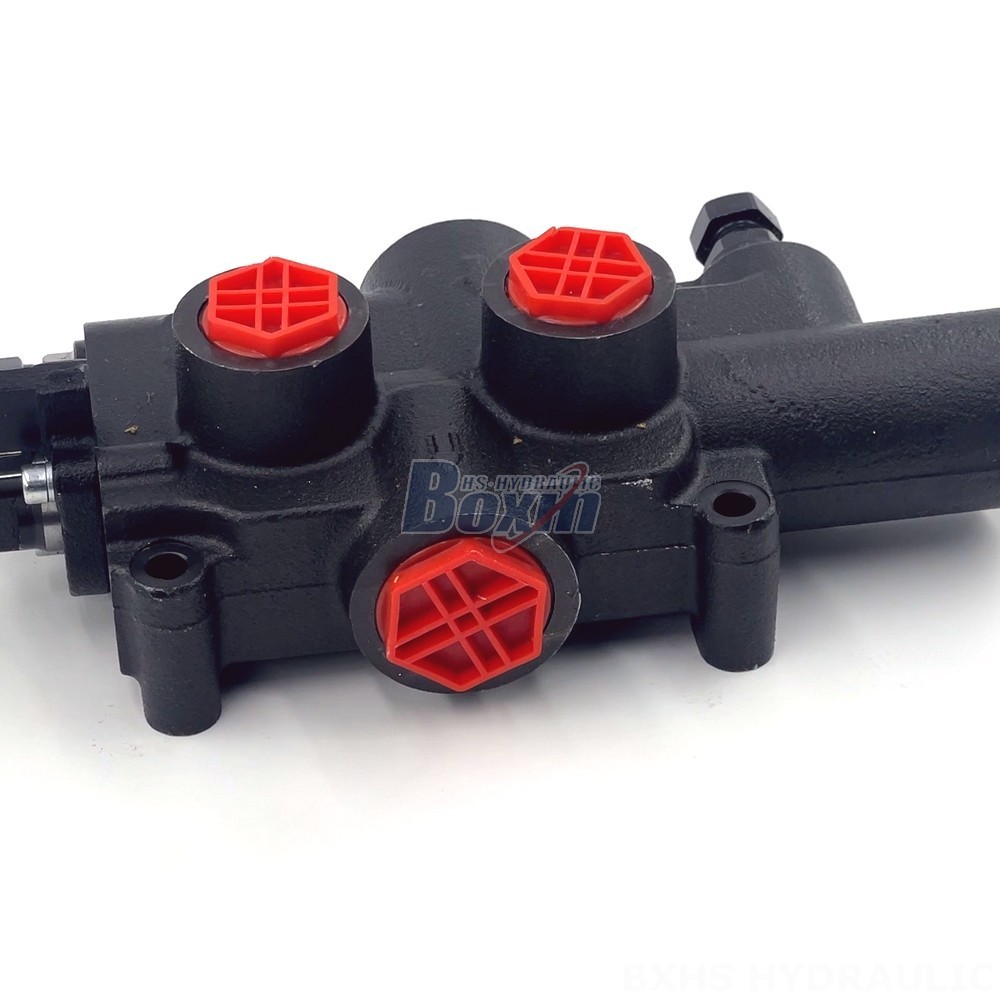

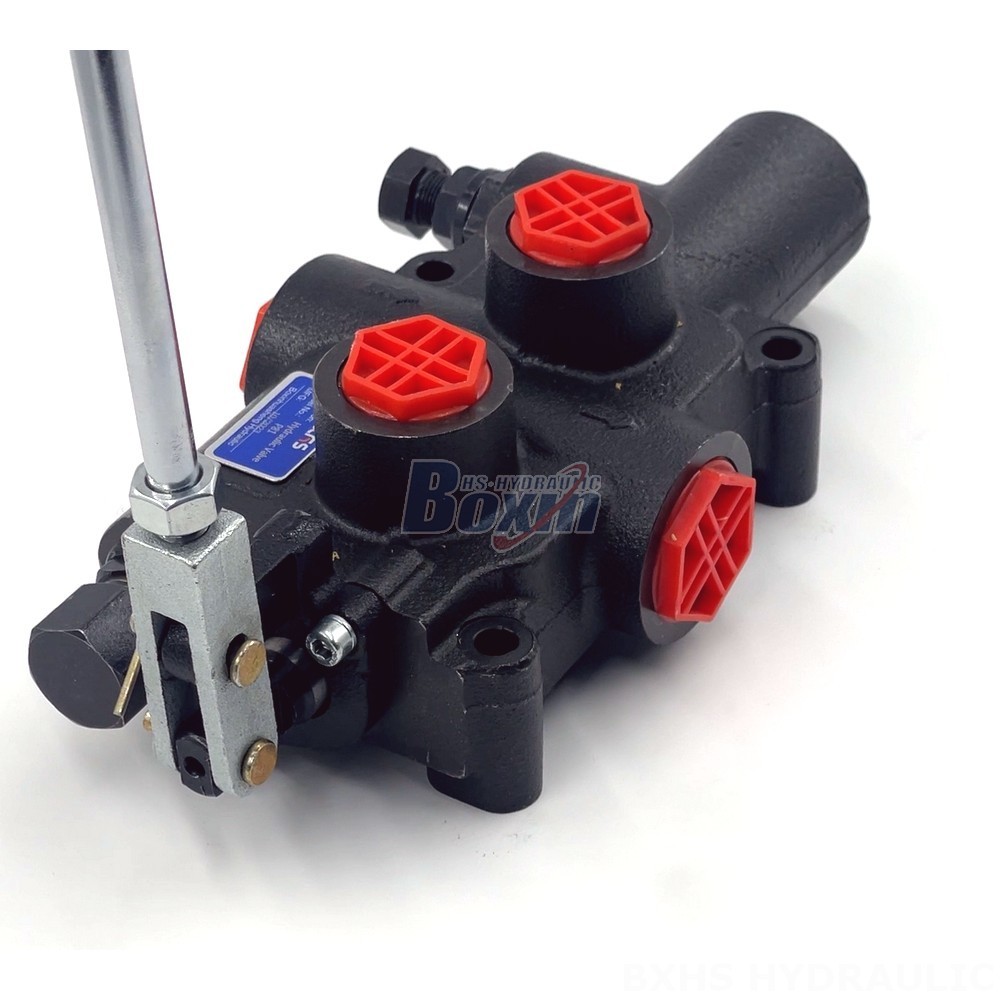

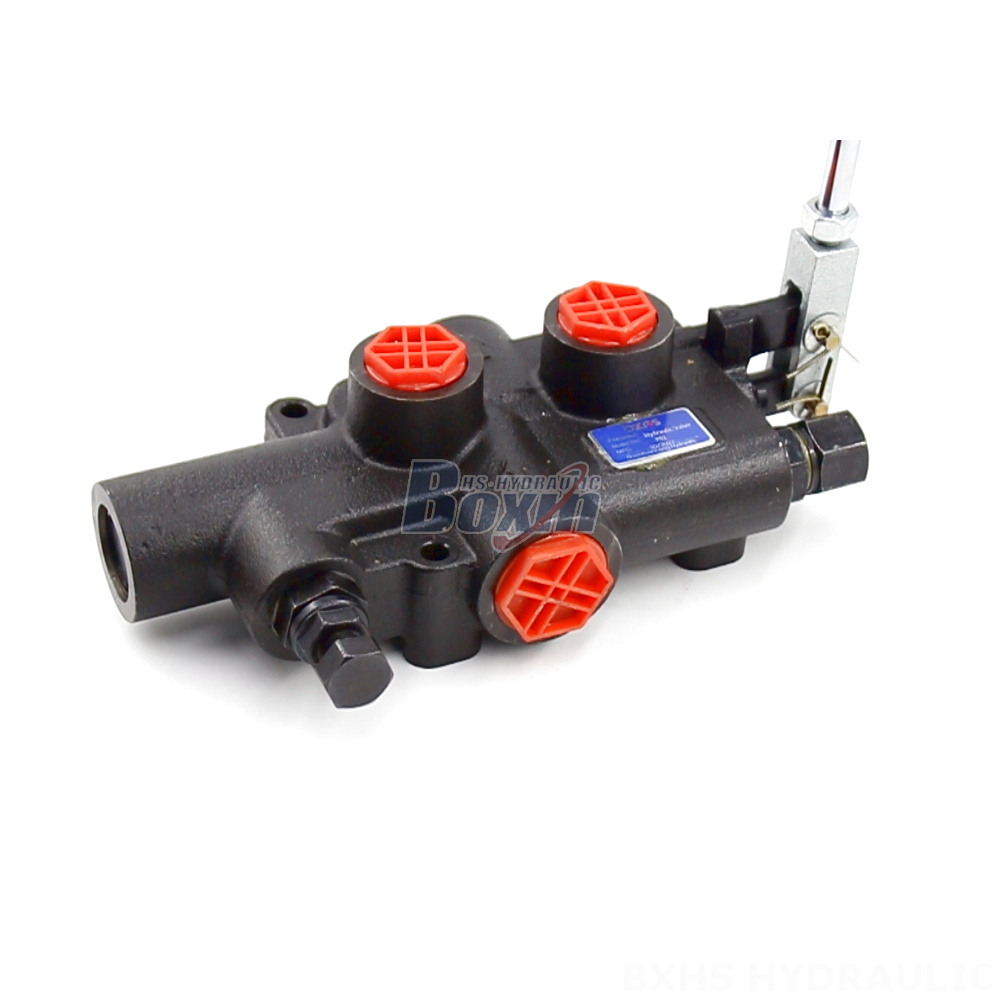

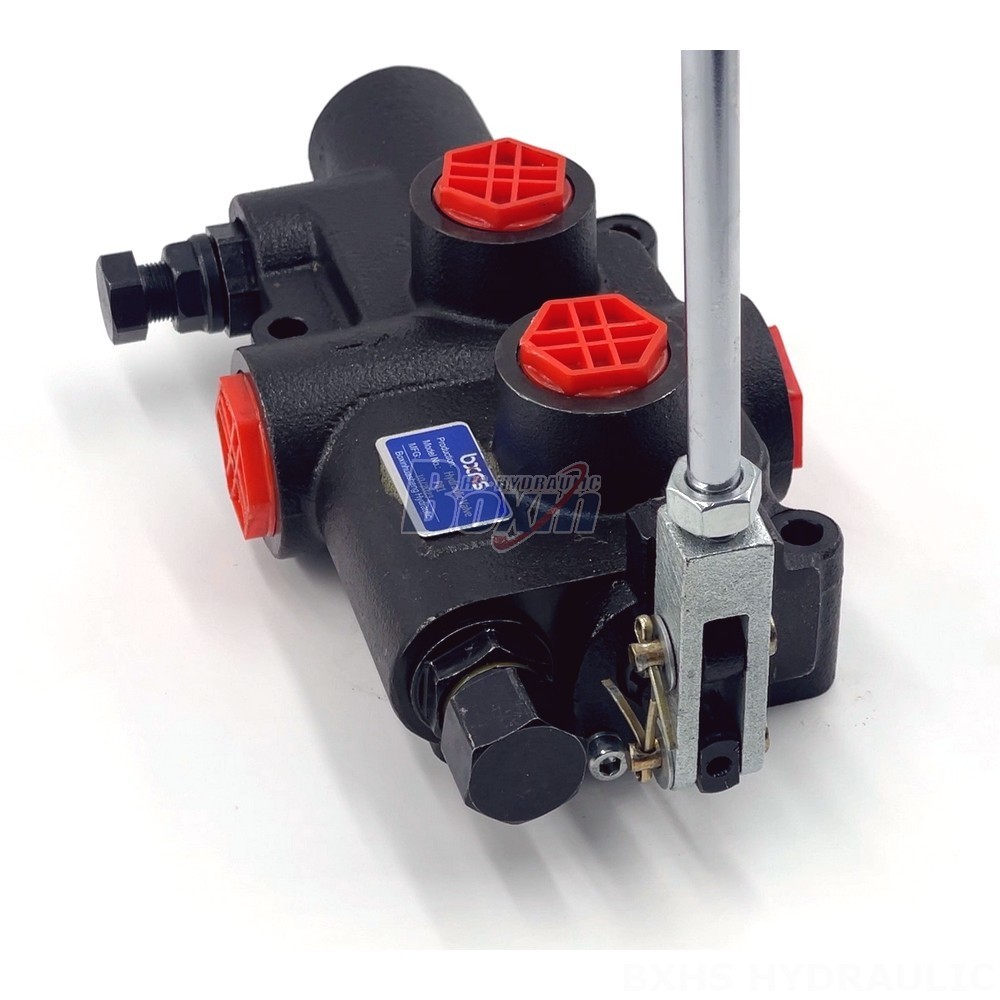

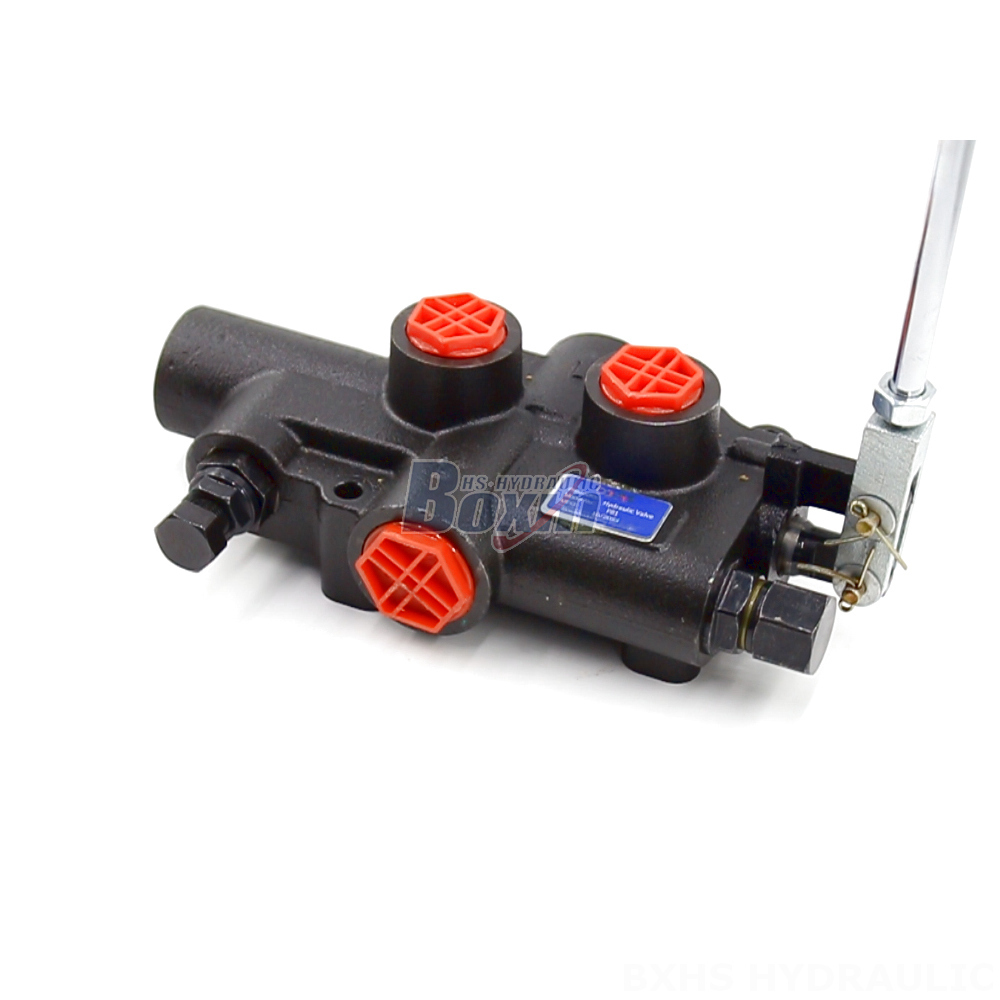

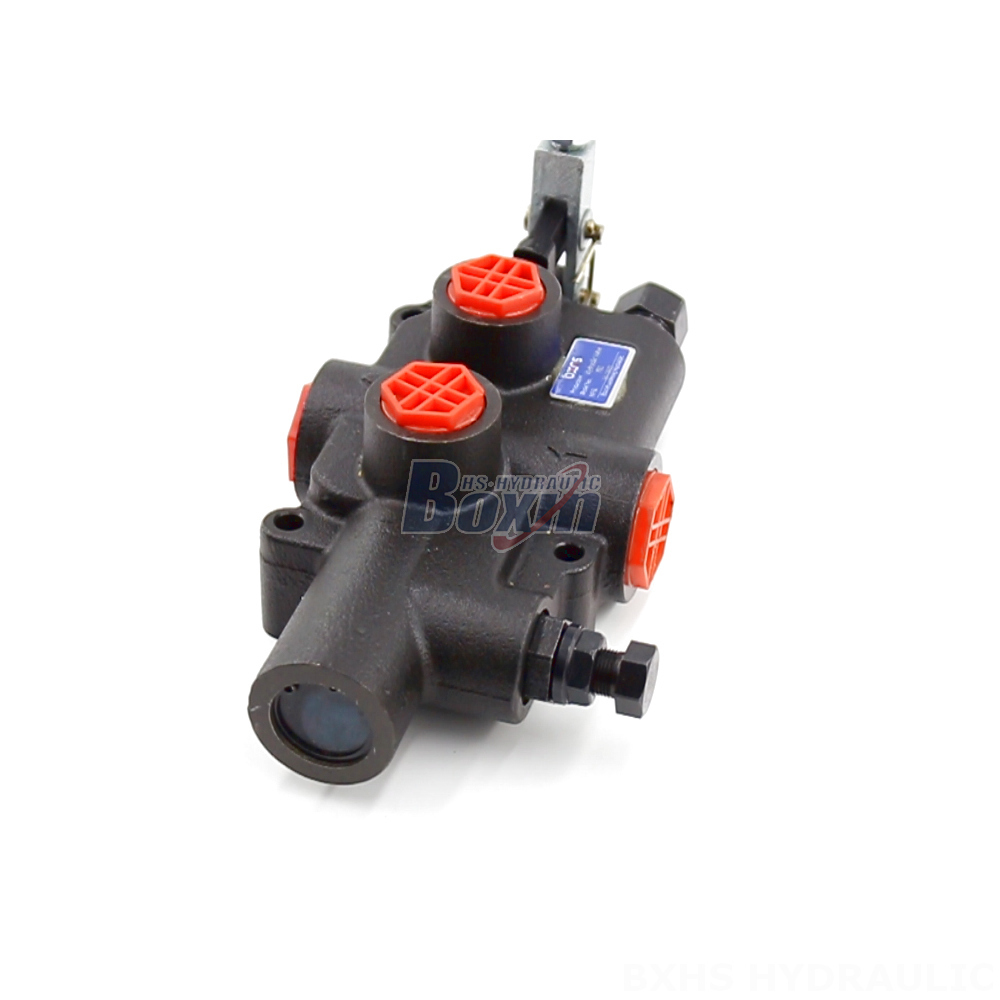

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.
| سلسلة P81 صمام تقسيم الخشب بارامترات | |
|---|---|
| طريقة التحكم | يدوي |
| الصمام | 1 بكرة |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 80 لتر/دقيقة (21.2 جالون أمريكي في الدقيقة), 95 لتر/دقيقة (25.1 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 19 ميجا باسكال (2735 رطل لكل بوص مربع) |
| منفذ الدخول | G1/2 |
| منفذ الخروج | G1/2 |
| حجم المنفذ | G3/4 |
The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
