الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

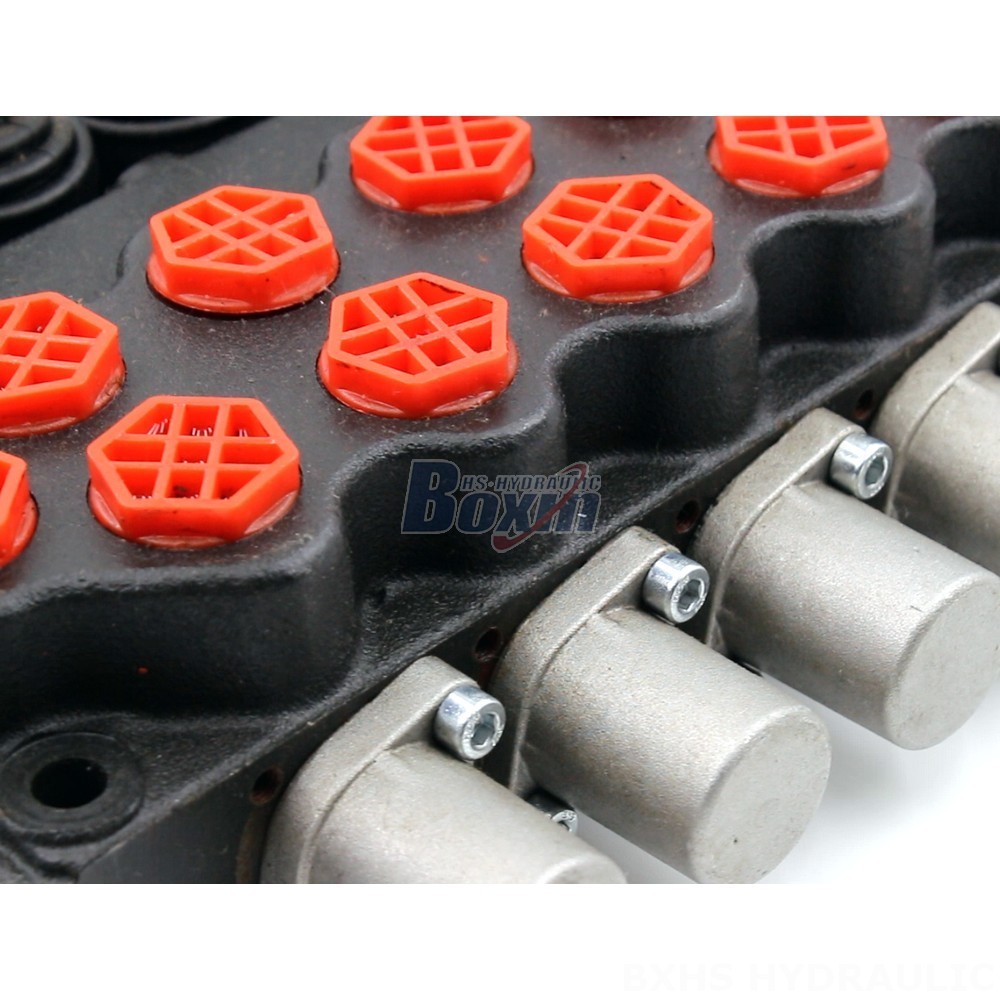

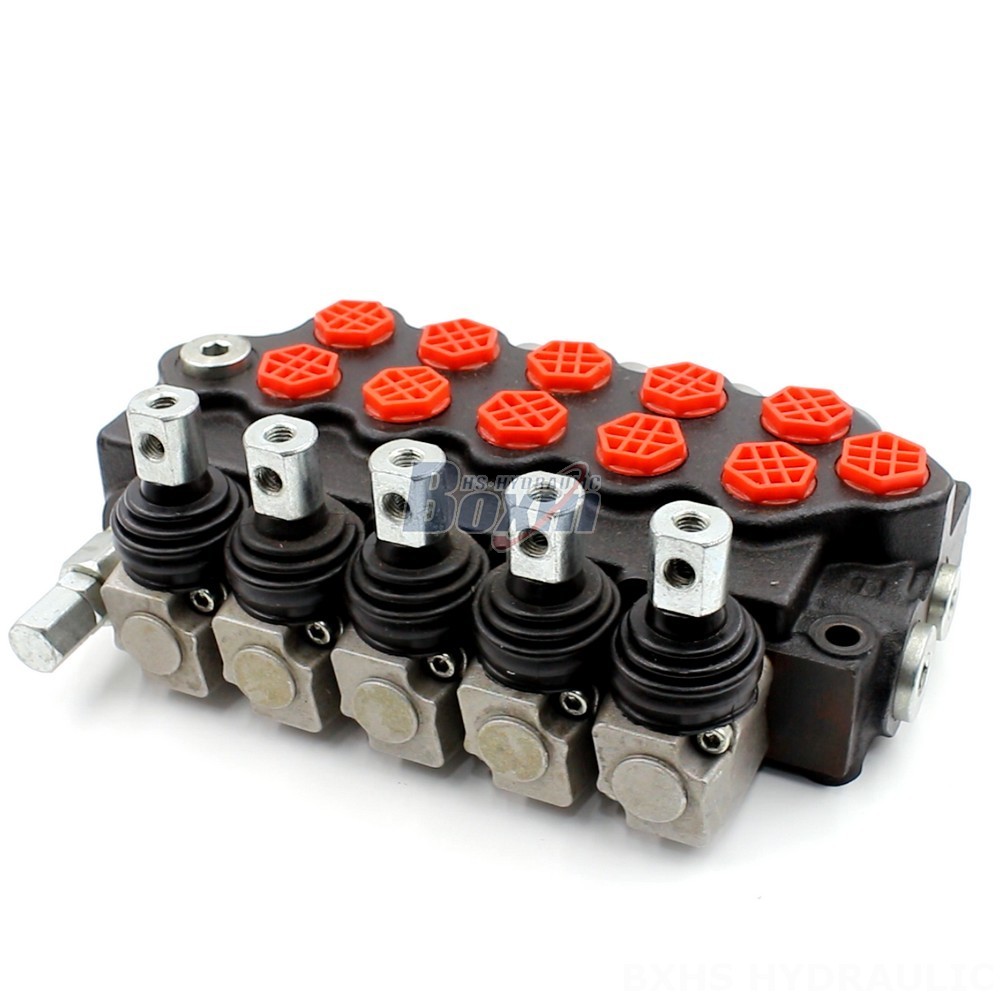

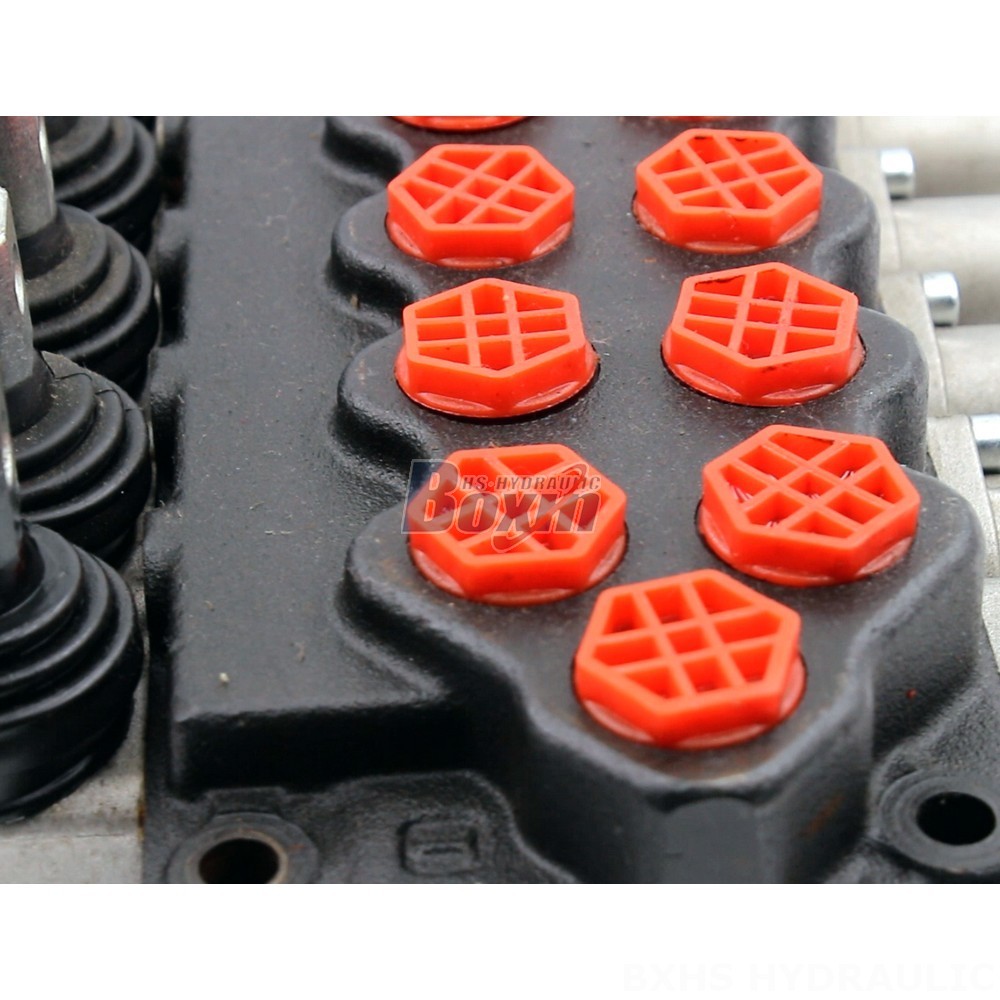

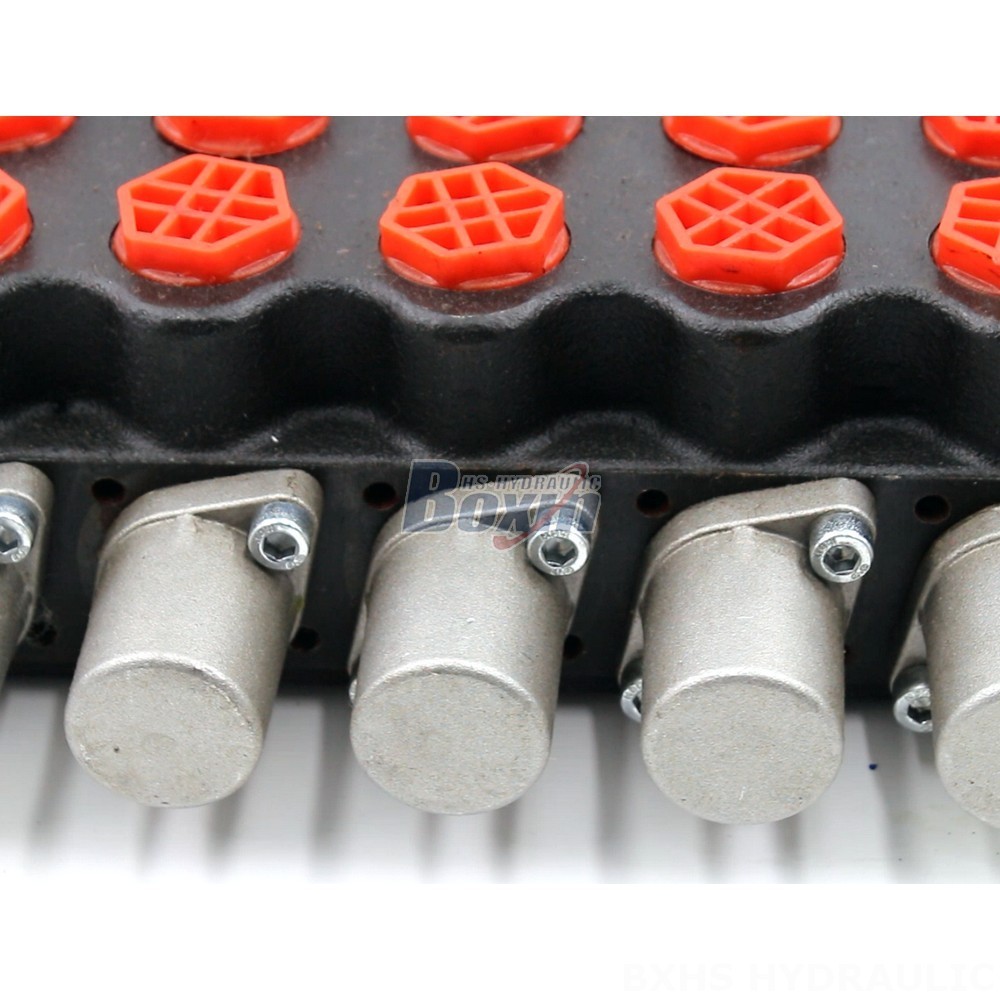

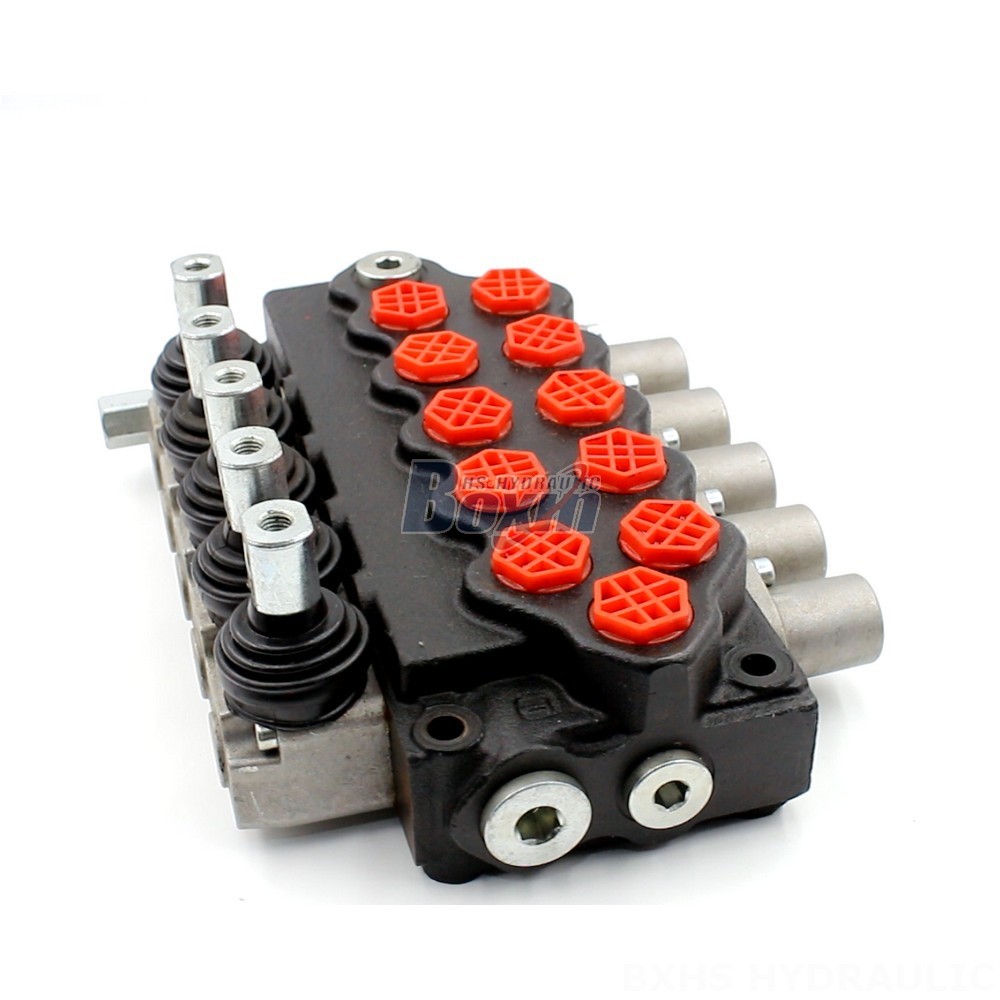

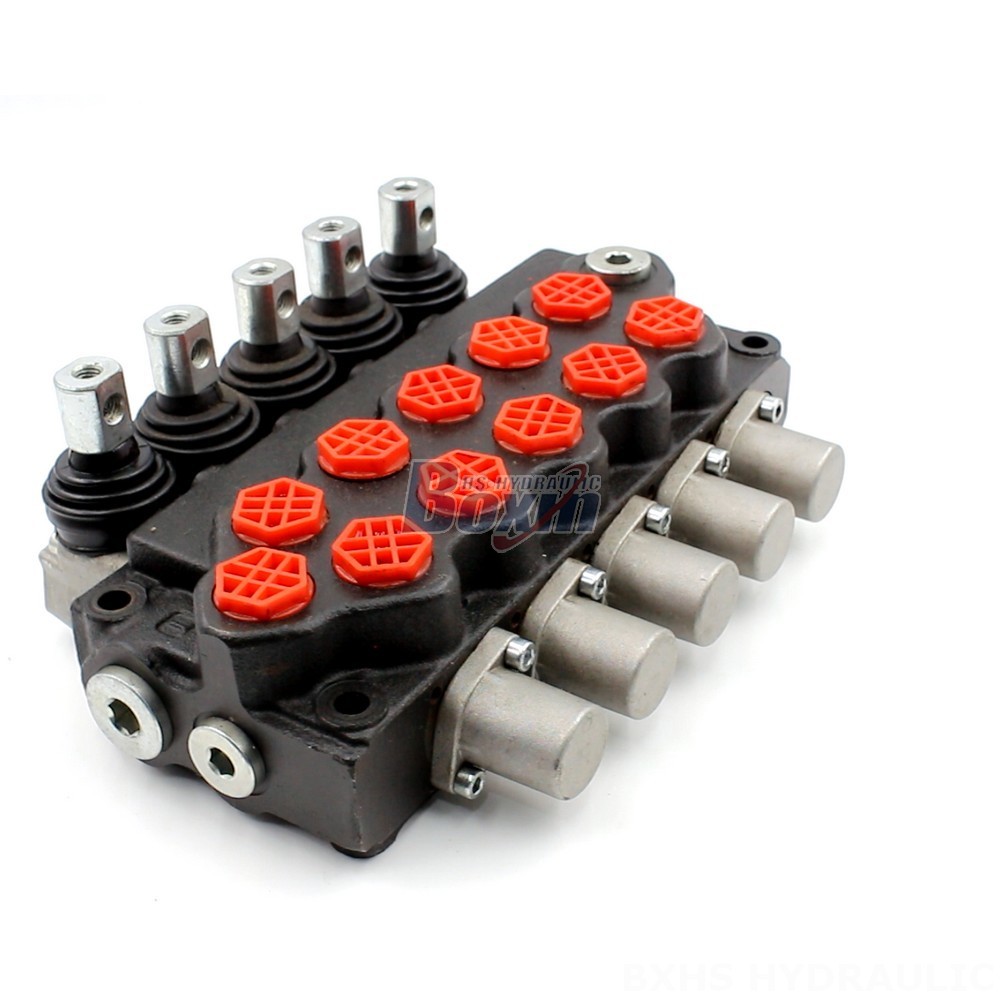

The SD5-G38 Series Lever Hydraulic Valve is a 5-section, manual monoblock directional valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This high-performance valve features a rated flow of 40 L/min and a maximum pressure of 305 bar, making it ideal for demanding operating conditions.
| سجل SD5 صمام اتجاهي أحادي الكتلة بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +60 درجة مئوية (-40 درجة فهرنهايت إلى +140 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 305 بار (4400 رطل لكل بوصة مربعة) |
| منفذ الدخول | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| منفذ الخروج | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| حجم المنفذ | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Series Lever Hydraulic Valve is a robust and reliable 5-section, manual monoblock directional valve. It is designed for use in a wide range of heavy-duty applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, and other construction and industrial vehicles. This valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for demanding operating conditions. The valve also features a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments. We offer wholesale and OEM options, making it easy for you to find the perfect solution for your needs. Contact us today to learn more about this high-performance hydraulic valve.
