الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

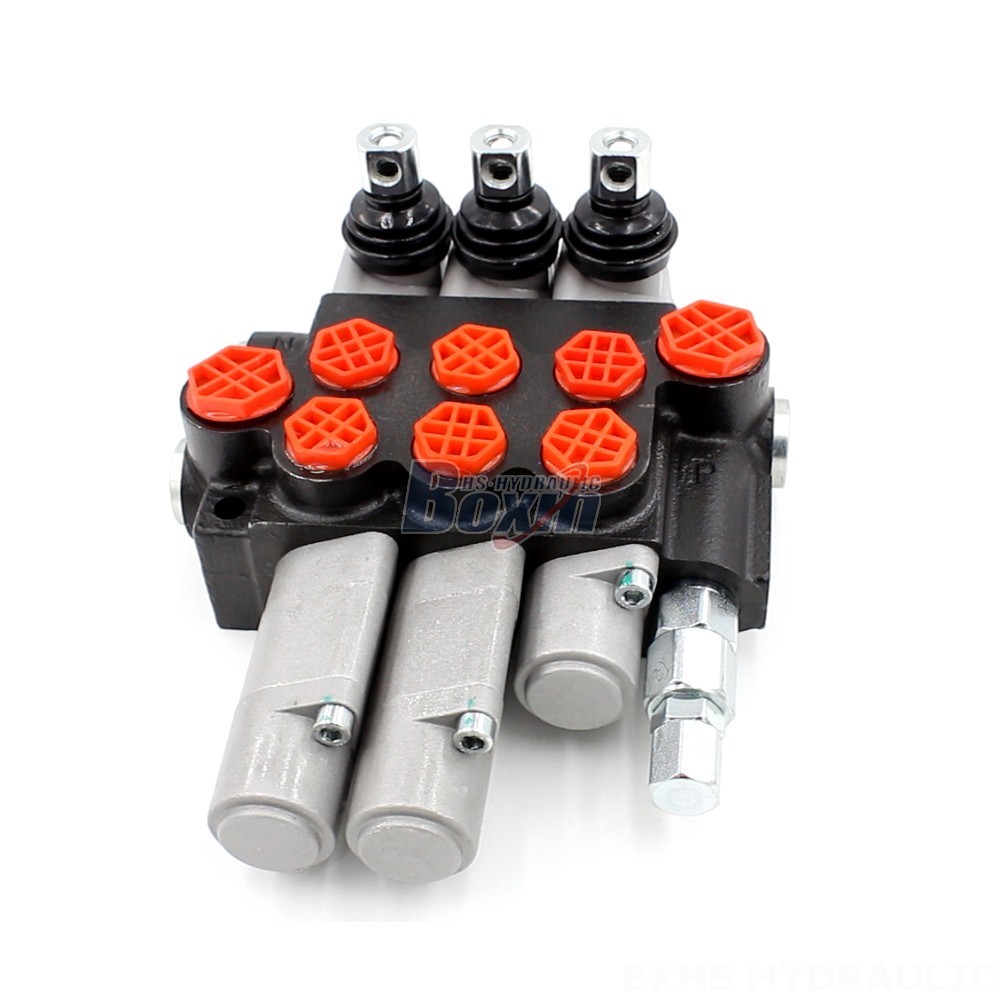

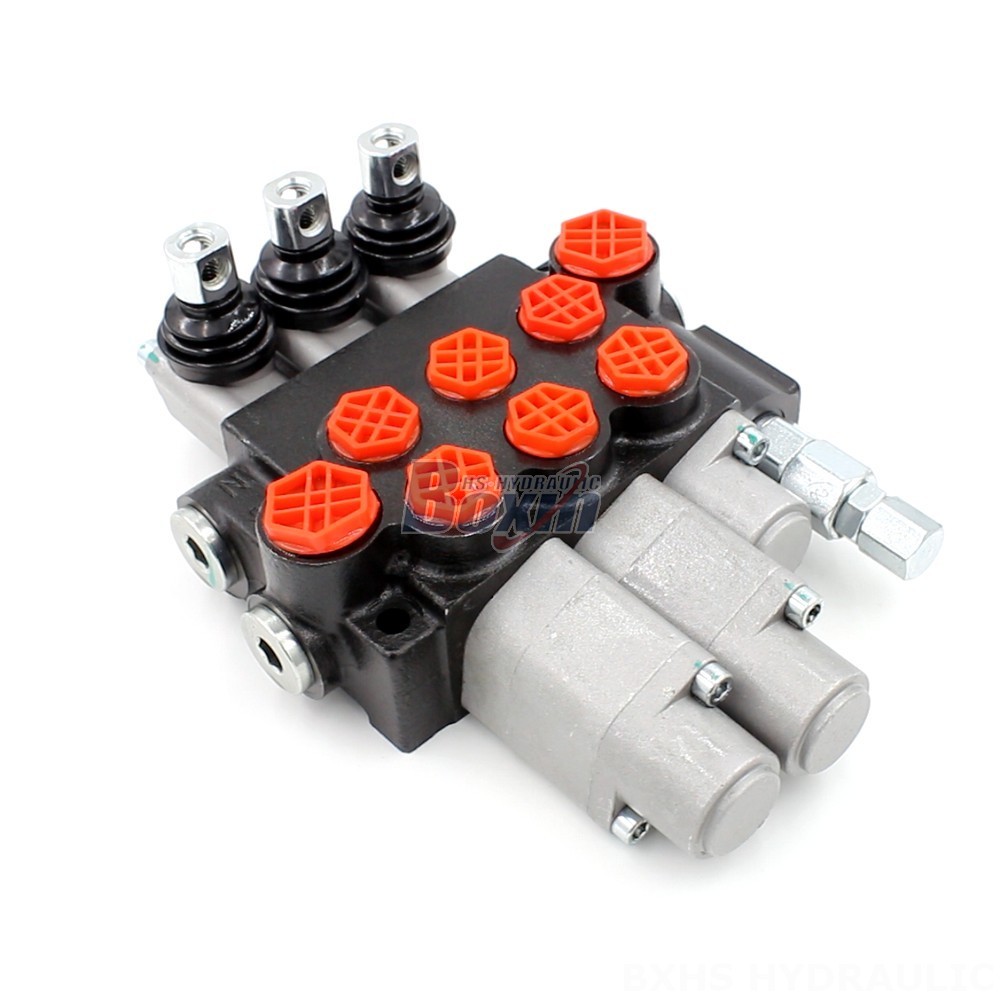

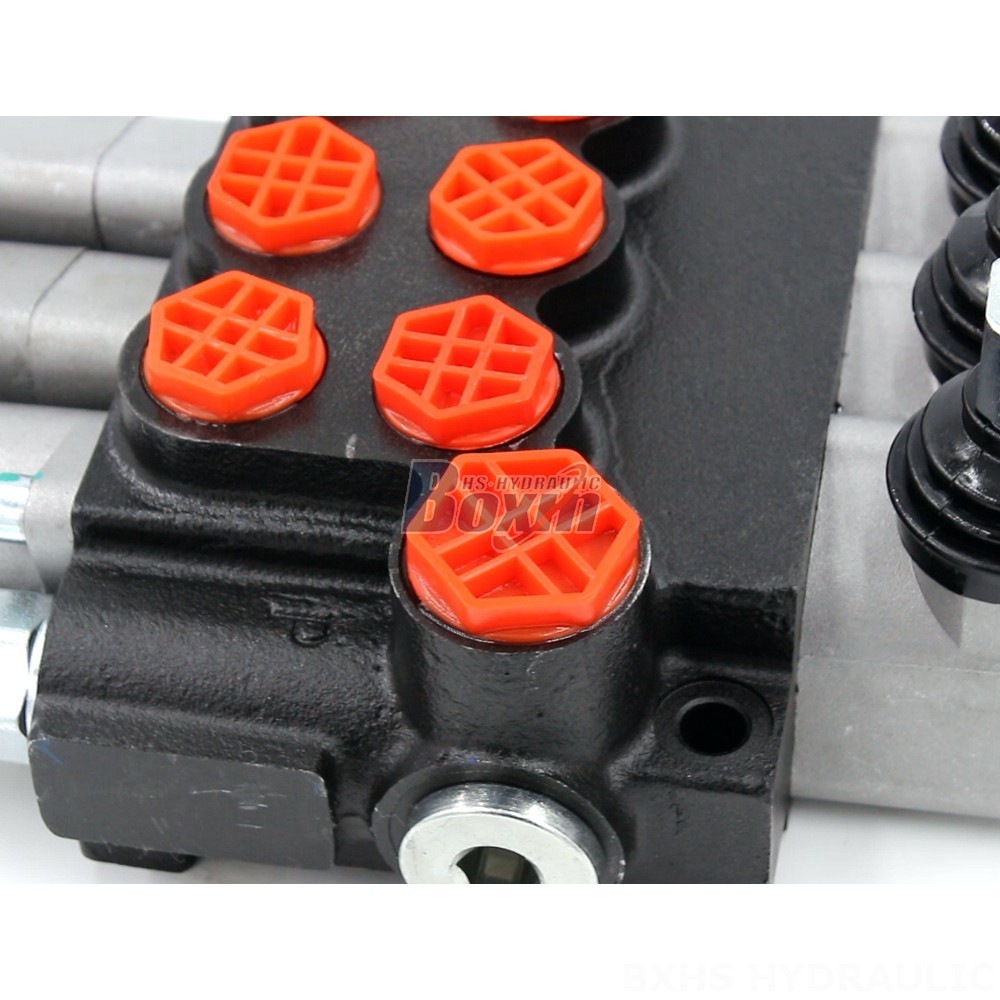

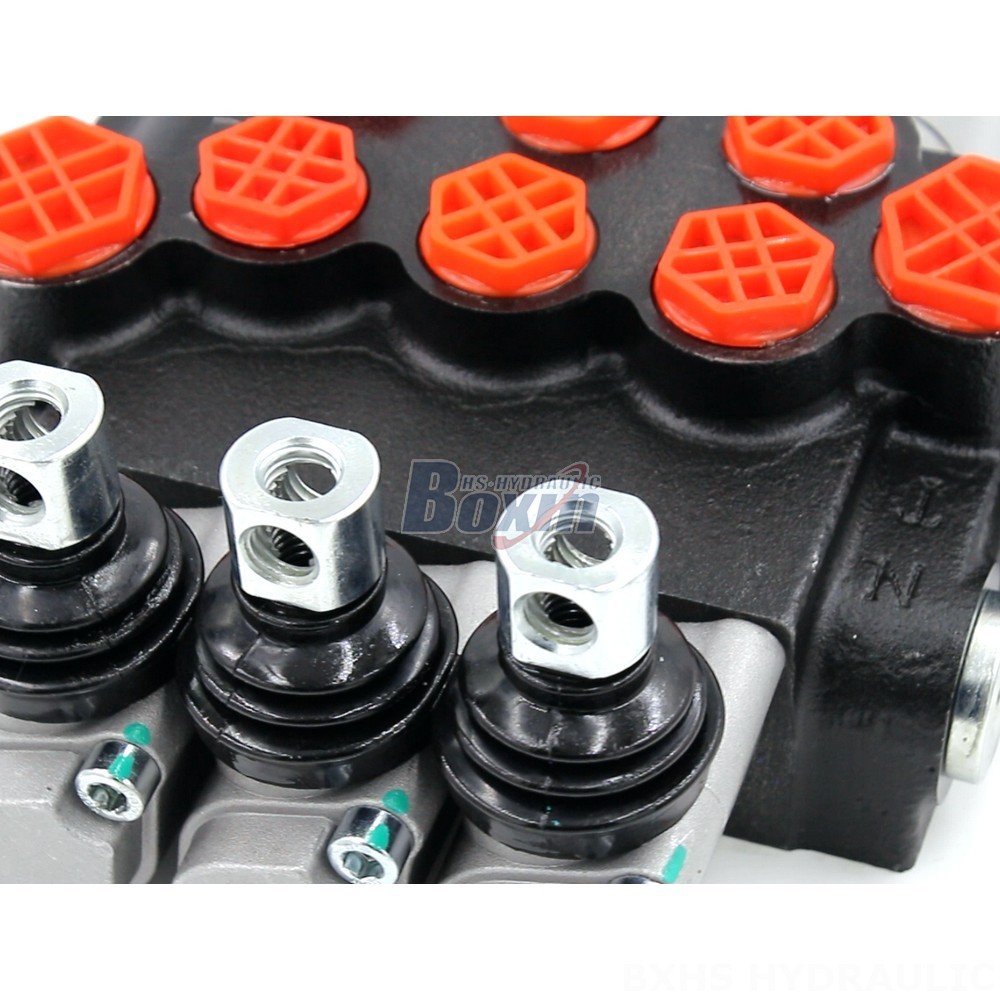

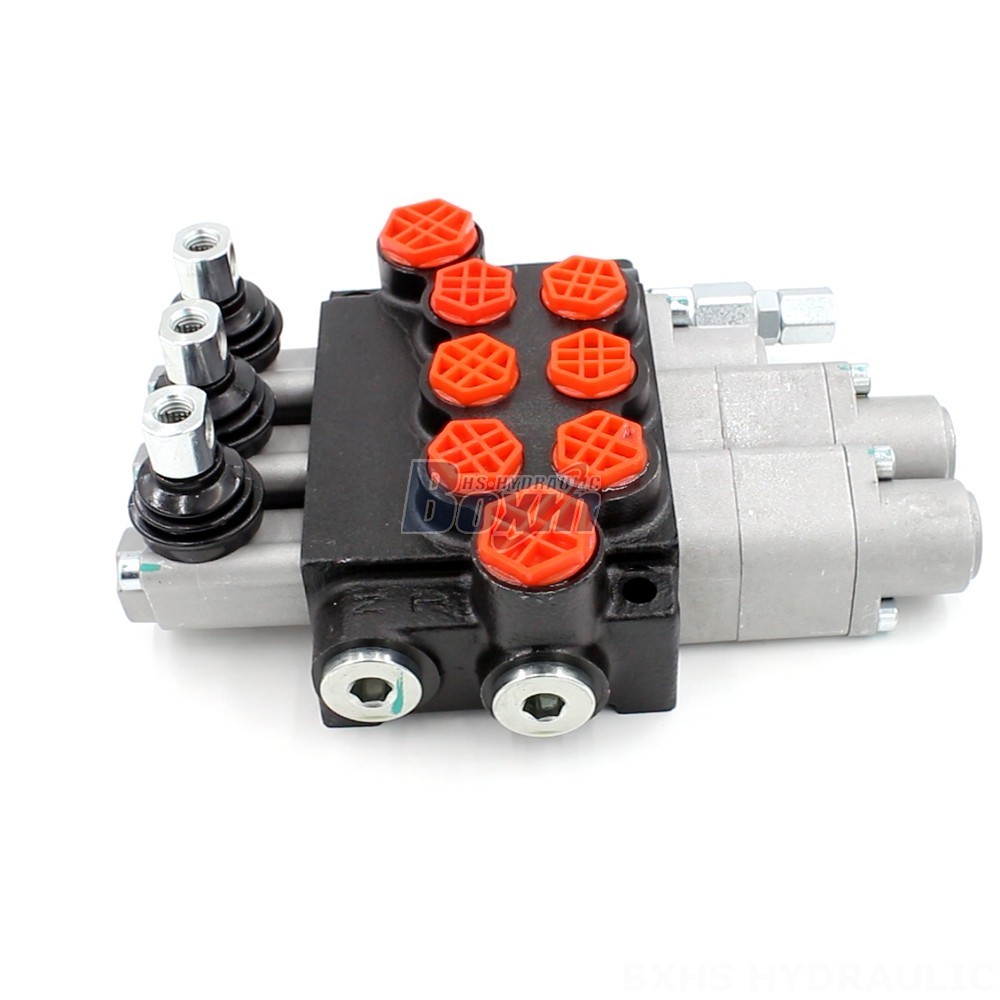

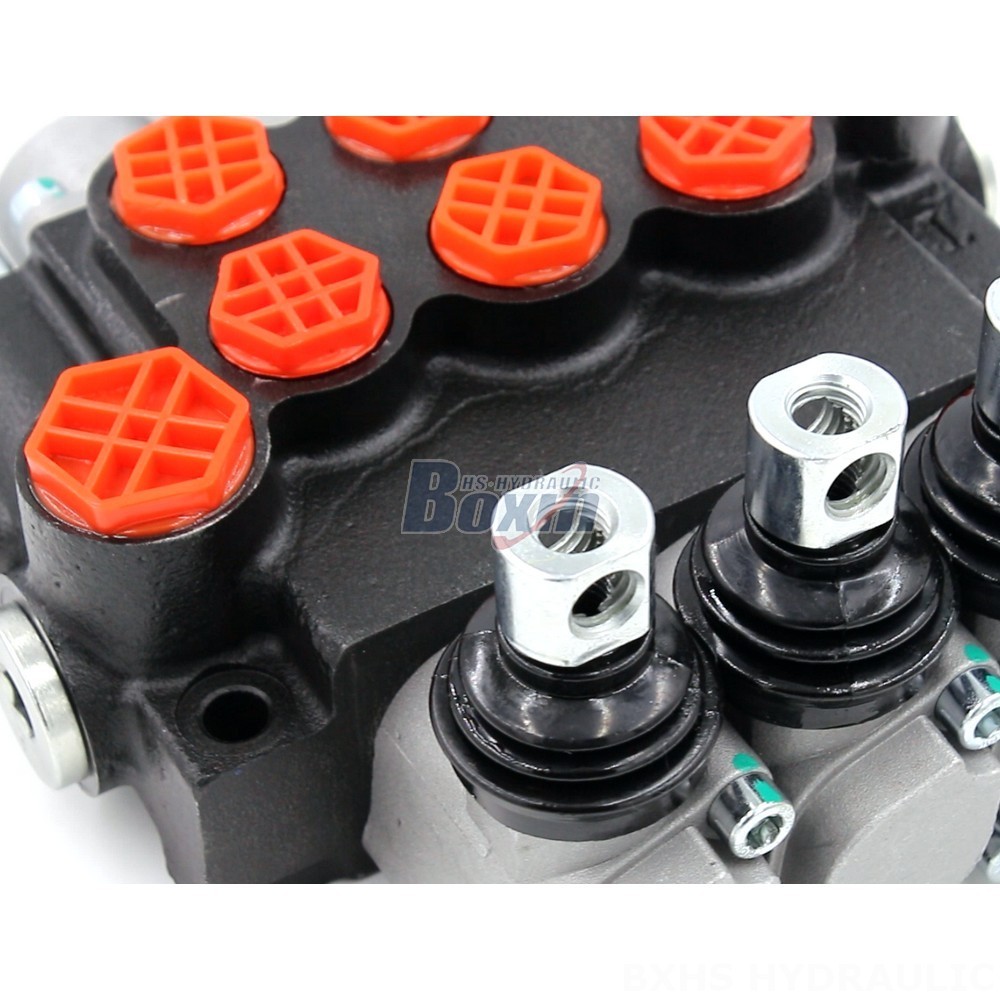

The P40-G12-G38-OT-2QTW Series is a high-performance, manual-controlled hydraulic valve designed for various construction and industrial applications. This 3-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, suitable for telehandlers, forklifts, cranes, and other heavy-duty machinery.
| سلسلة P40 صمام اتجاهي أحادي الكتلة بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم, ملف لولبي وذراع تحكم, يدوي وذراع تحكم, ملف لولبي وكابل |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 250 بار (3600 رطل لكل بوصة مربعة) |
| منفذ الدخول | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| منفذ الخروج | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| حجم المنفذ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This Tractor Hydraulic Control Electric Valve Monoblock Hydraulic Valve from the P40 Series is a robust and reliable solution for controlling hydraulic systems in various applications, including construction, material handling, agriculture, and industrial vehicles. The valve features a manual control method and a 3-section monoblock structure. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. The P40-G12-G38-OT-2QTW Series offers a wide operating viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring reliable performance in diverse environments.
