P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

طريقة التحكم:يدوي

الصمام:4 بكرات

معدل التدفق المقنن:40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة)

أقصى ضغط:250 بار (3600 رطل لكل بوصة مربعة)

منفذ الدخول:G1/2

منفذ الخروج:G1/2

حجم المنفذ:G3/8

العلامة التجارية:BXHS

نوع المنتج:صمام اتجاهي أحادي الكتلة

سلسلة المنتجات:سلسلة P40 صمام اتجاهي أحادي الكتلة

حجم العبوة:24*23*13

الوزن الإجمالي:8.20 kg

التوفر: متوفر بالمخزن

1432 شخصاً يشاهدون هذا المنتج

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications drawing image

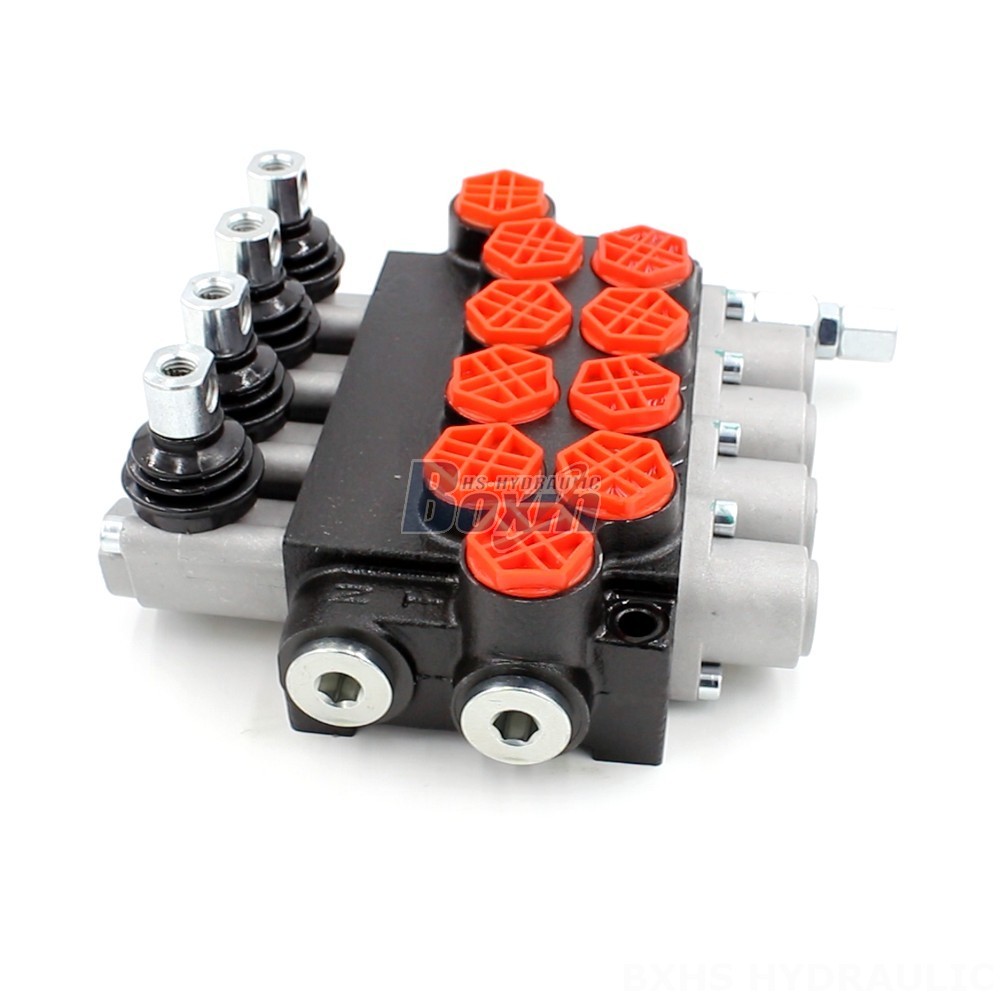

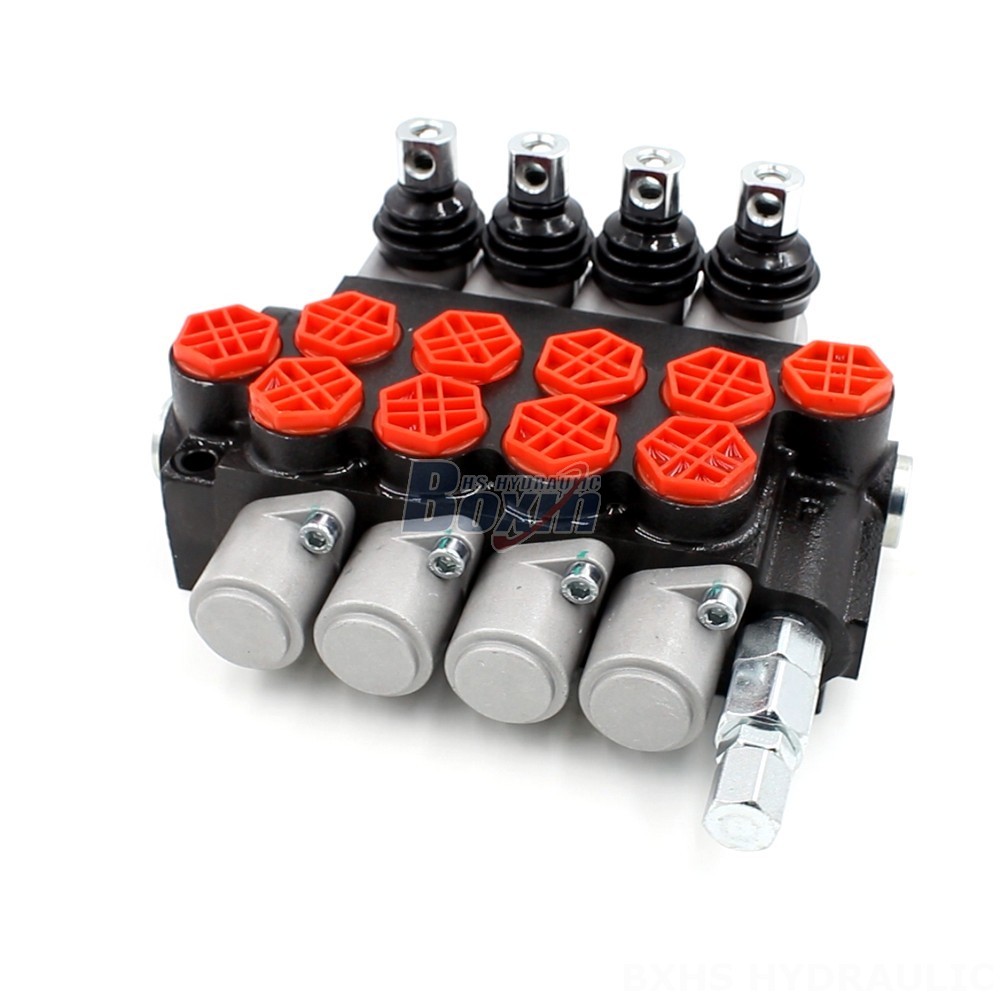

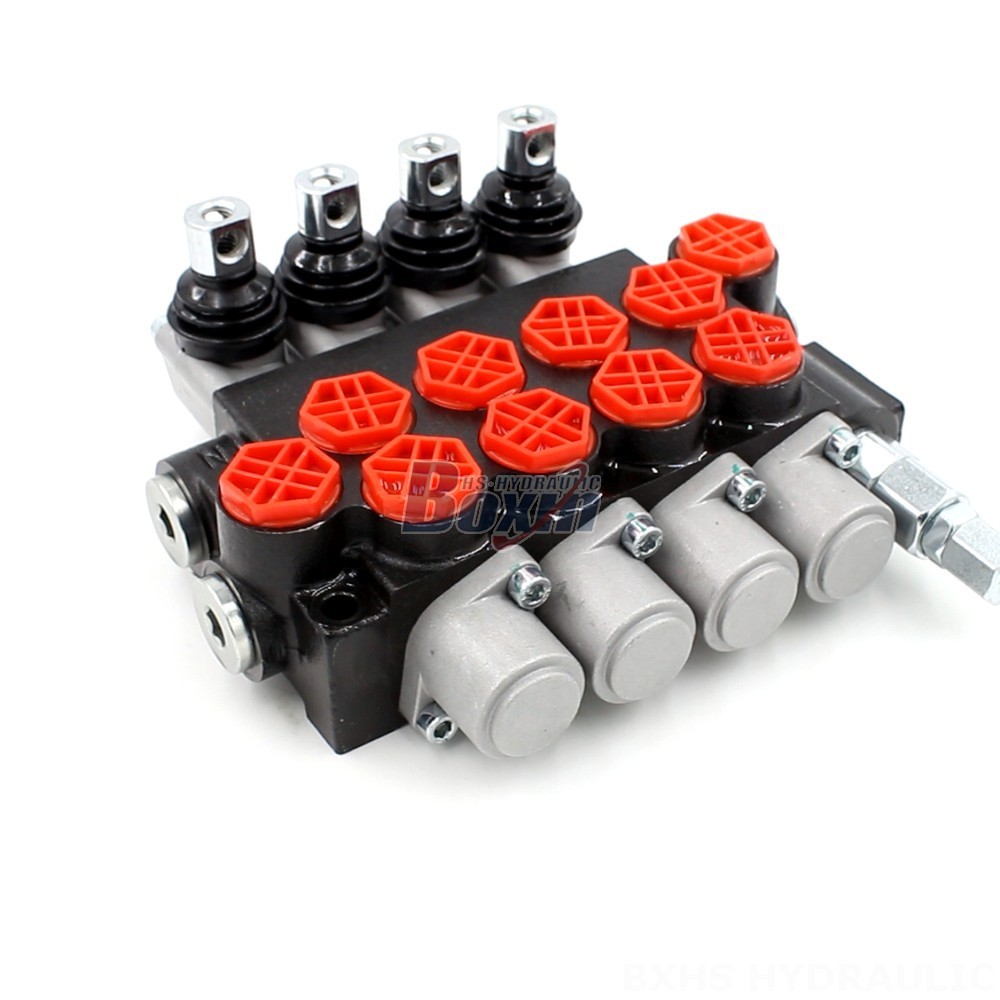

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a high-performance, 4-section, manual control valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of mobile hydraulic systems.

سلسلة P40 صمام اتجاهي أحادي الكتلة بارامترات
طريقة التحكم يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم, ملف لولبي وذراع تحكم, يدوي وذراع تحكم, ملف لولبي وكابل
الصمام 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات
نطاق درجة الحرارة المحيطة -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت)
نوع البنية صمام أحادي الكتلة
المقطع المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7
نطاق اللزوجة التشغيلية 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك)
معدل التدفق المقنن 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة)
أقصى ضغط 250 بار (3600 رطل لكل بوصة مربعة)
منفذ الدخول G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
منفذ الخروج G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
حجم المنفذ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications. Its monoblock construction provides a compact and durable design, while its manual control method offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-flow, high-pressure applications. Its operating viscosity range of 15 - 75 mm²/s ensures optimal performance in a variety of operating conditions. The valve is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its versatile design and robust construction make it an ideal choice for various mobile hydraulic systems in construction, material handling, agriculture, and industrial vehicles.
