الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

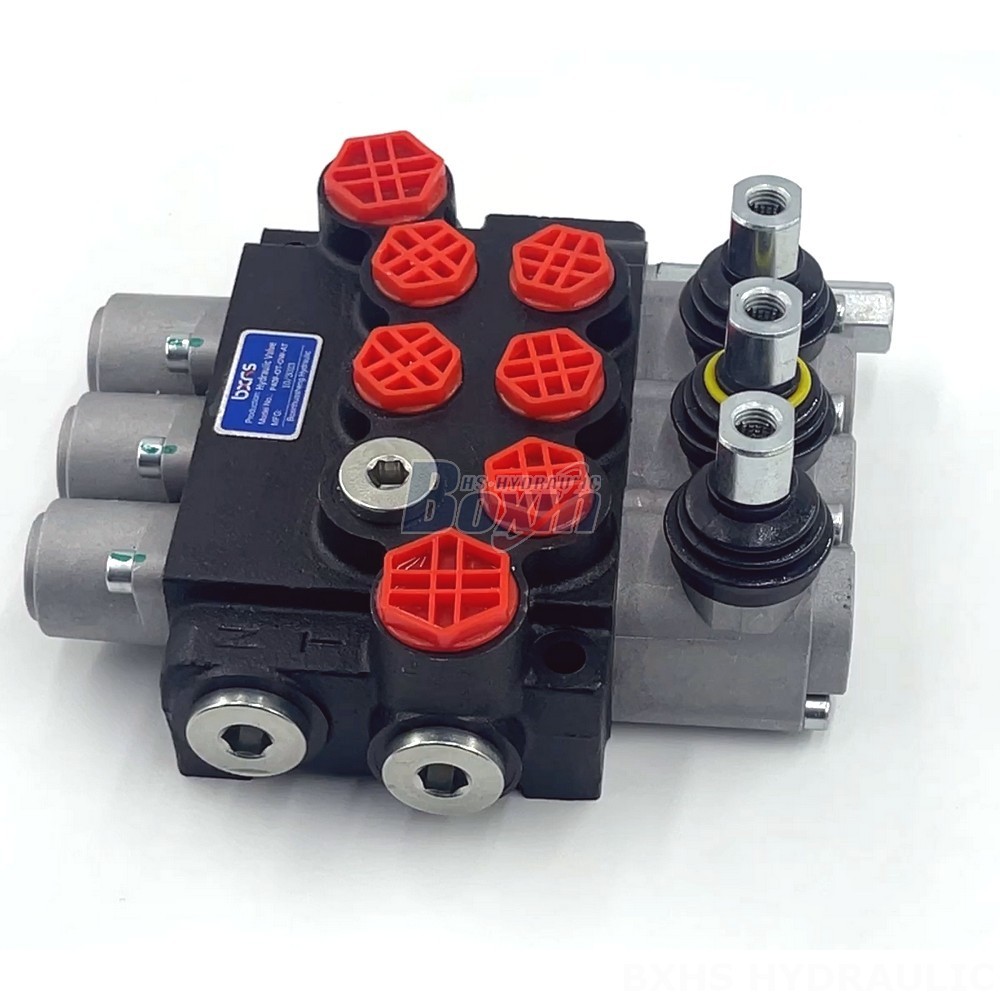

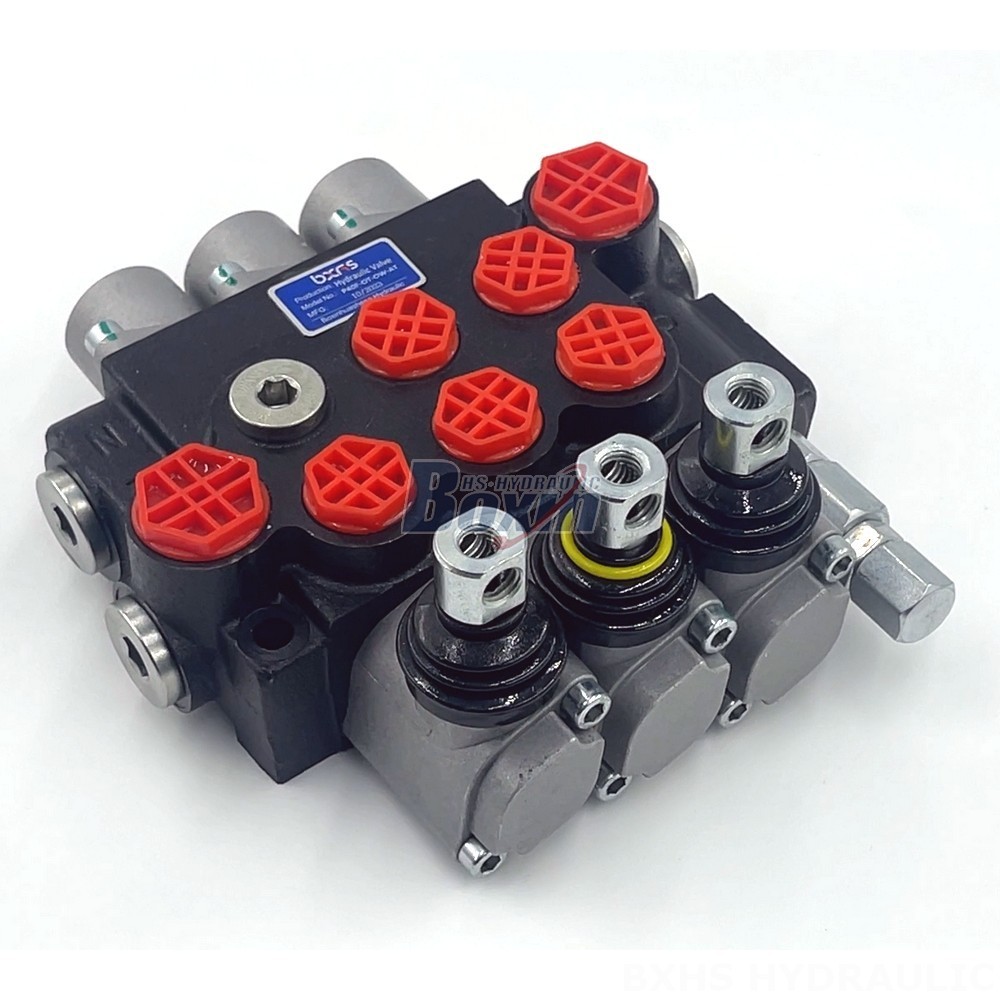

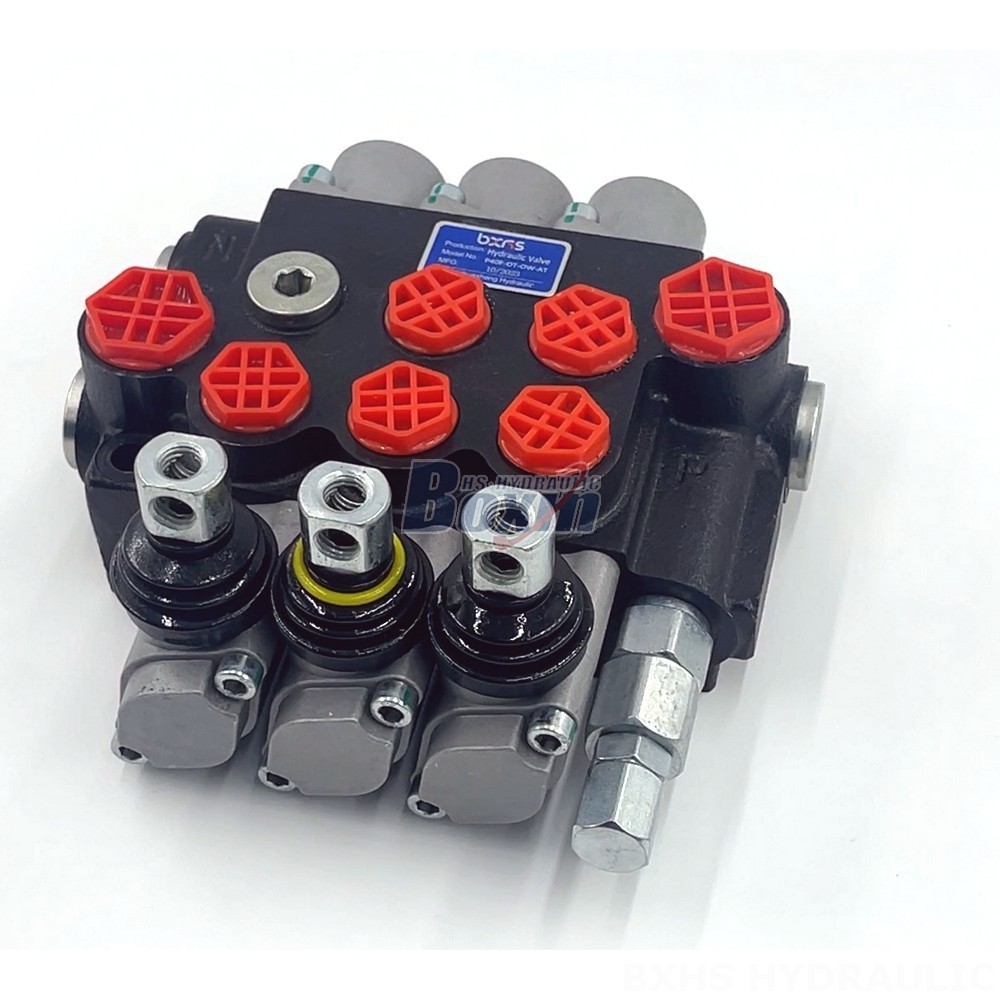

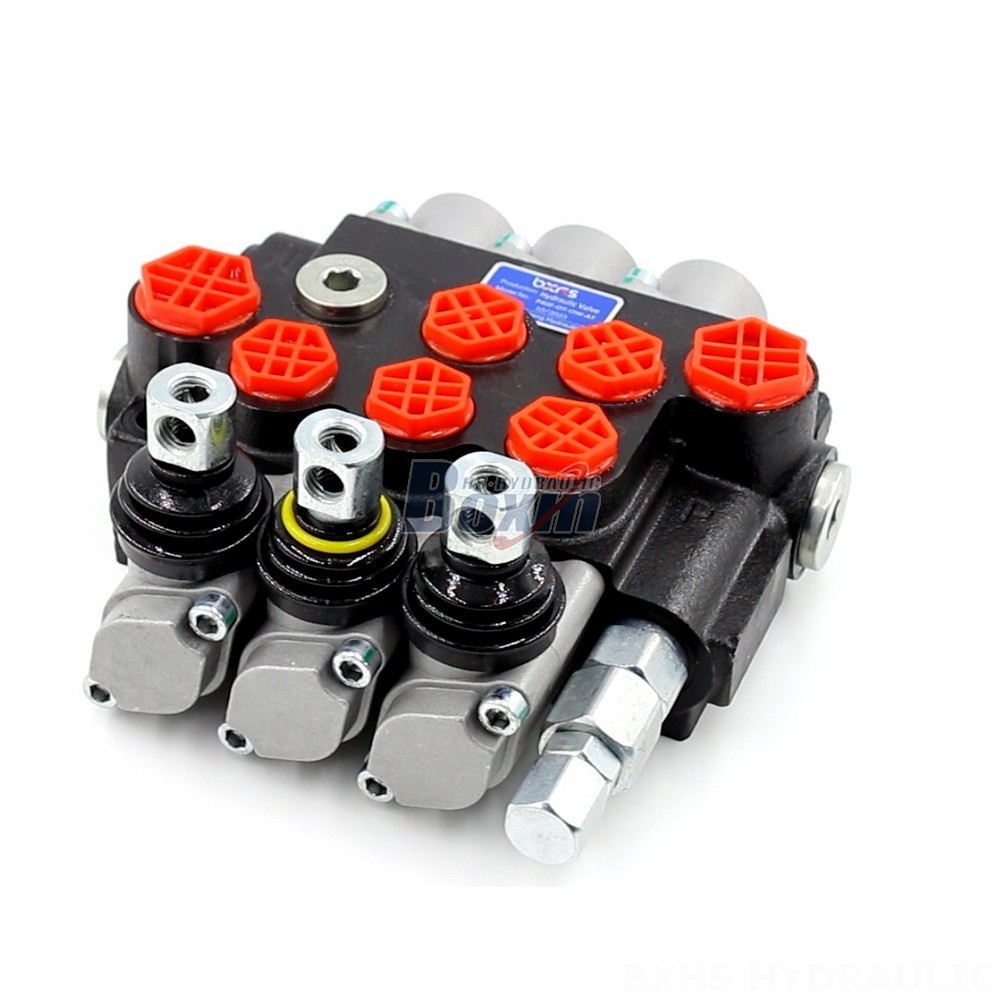

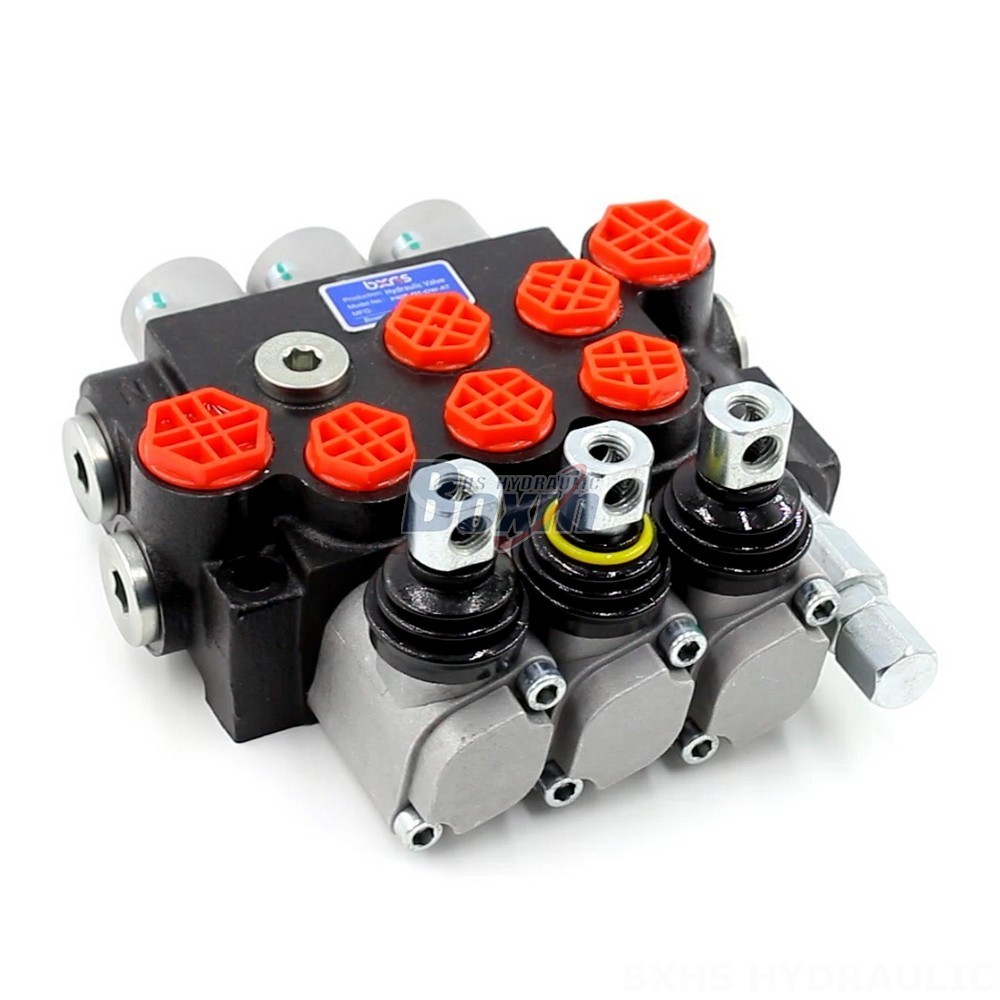

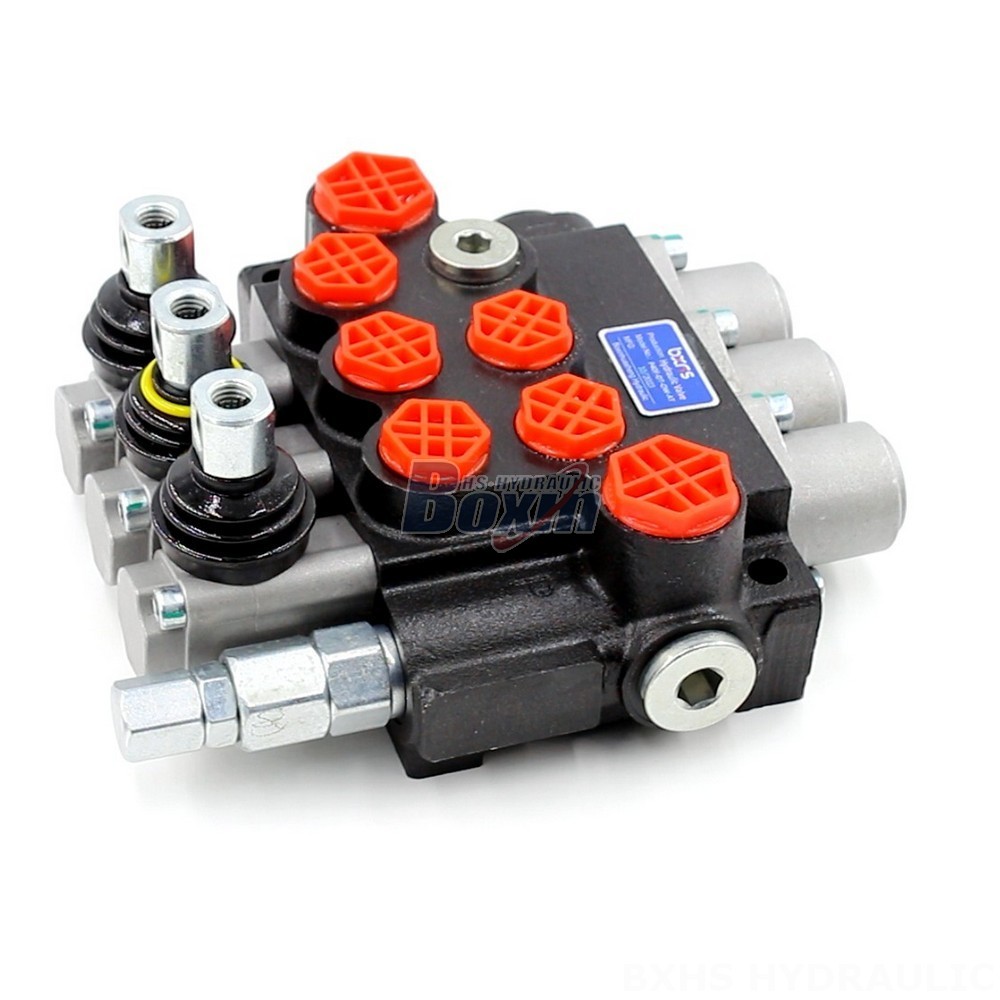

The P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. It features a compact design and high flow rate, making it ideal for a wide range of applications.
| سلسلة P40 صمام اتجاهي أحادي الكتلة بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم, ملف لولبي وذراع تحكم, يدوي وذراع تحكم, ملف لولبي وكابل |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 250 بار (3600 رطل لكل بوصة مربعة) |
| منفذ الدخول | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| منفذ الخروج | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| حجم المنفذ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve that offers reliable and precise control of hydraulic fluid flow. It is designed for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. This valve features a compact design and high flow rate, making it ideal for demanding applications. The valve is also equipped with a manual control lever for easy operation. Key features include a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
