الإنتاج والتسليم
مهلة الإنتاج 15-30 يومًا

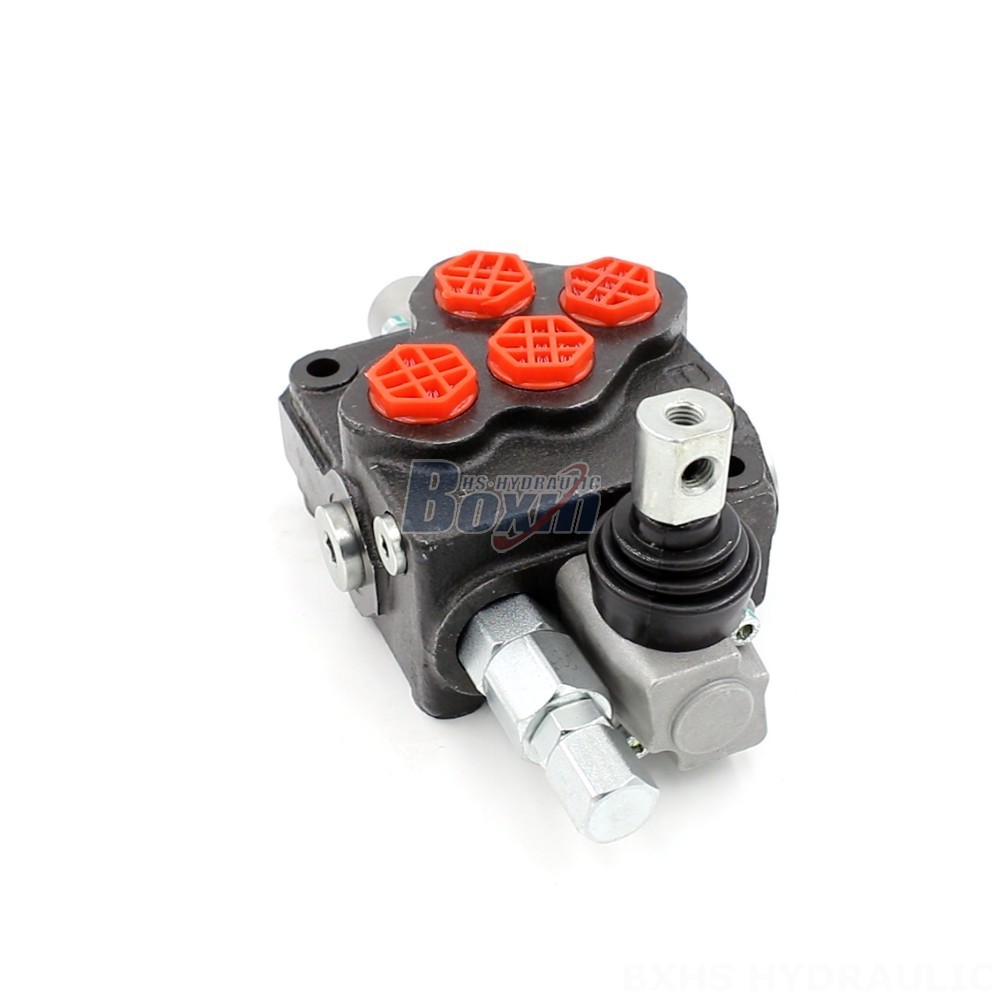

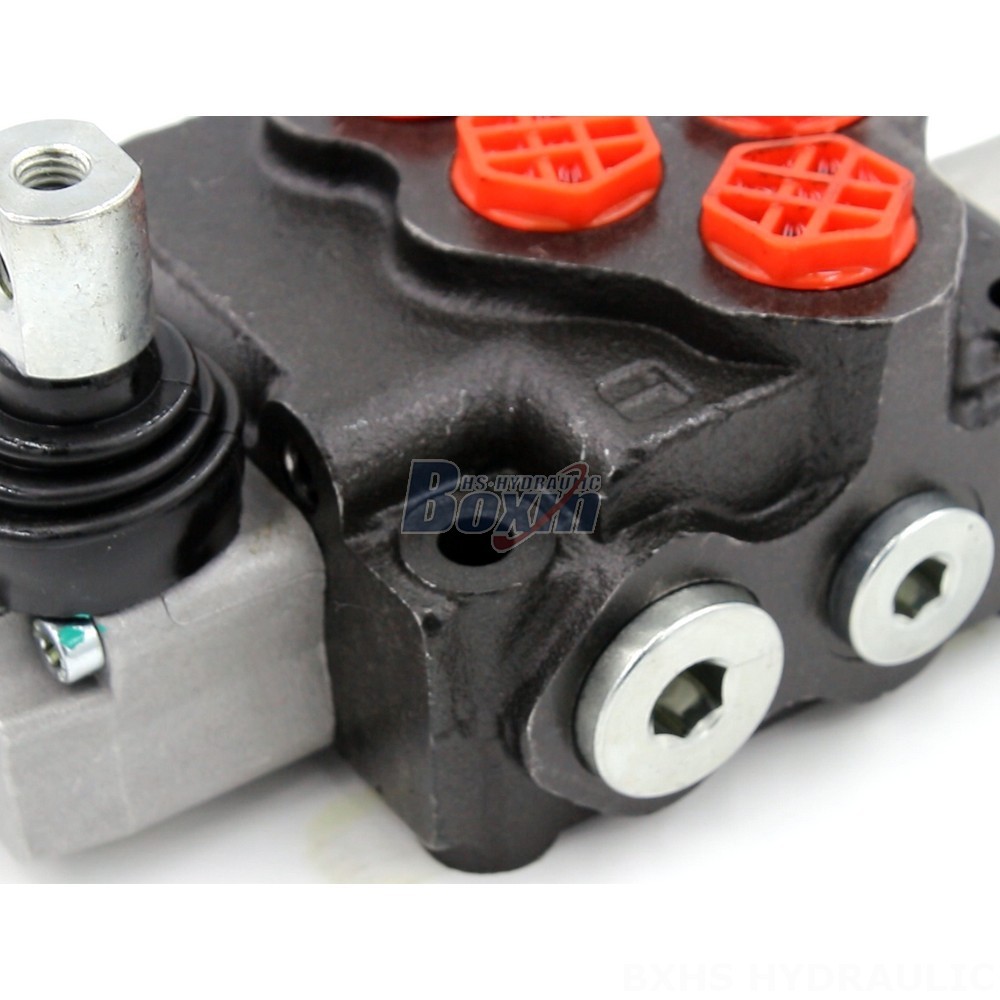

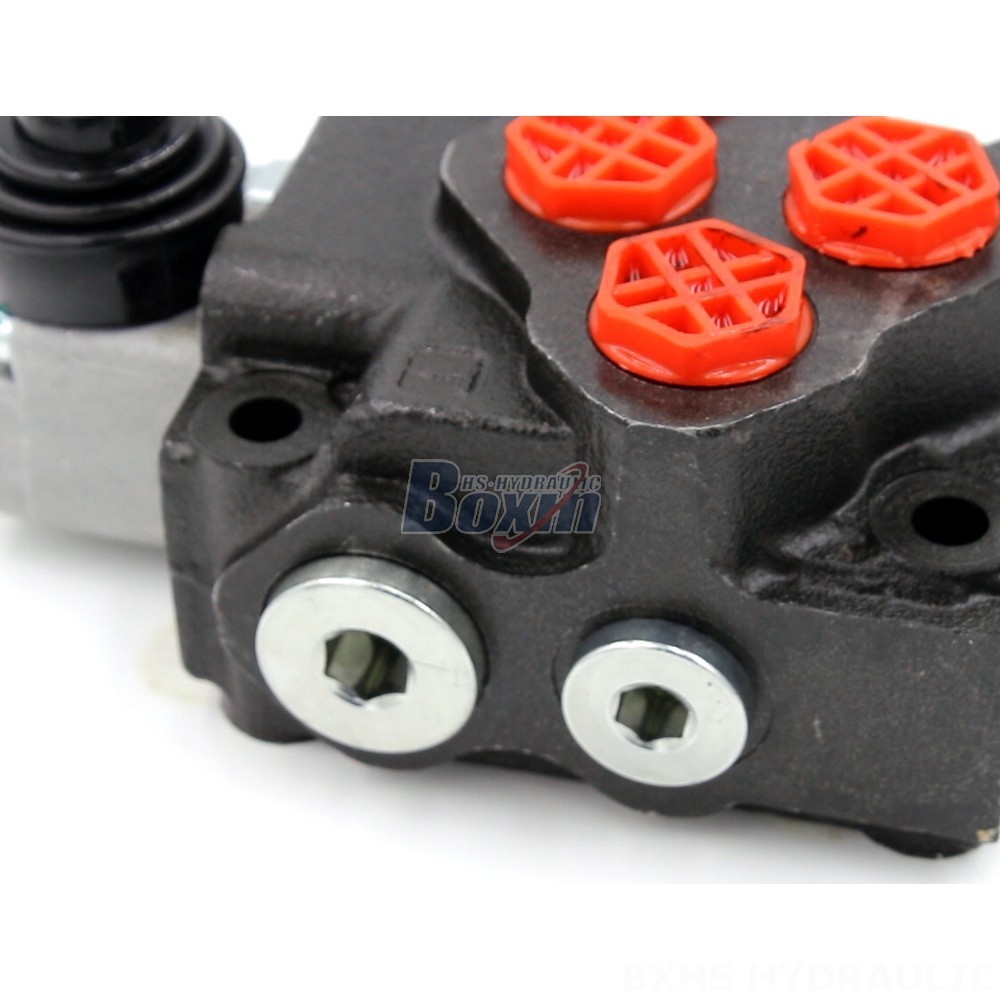

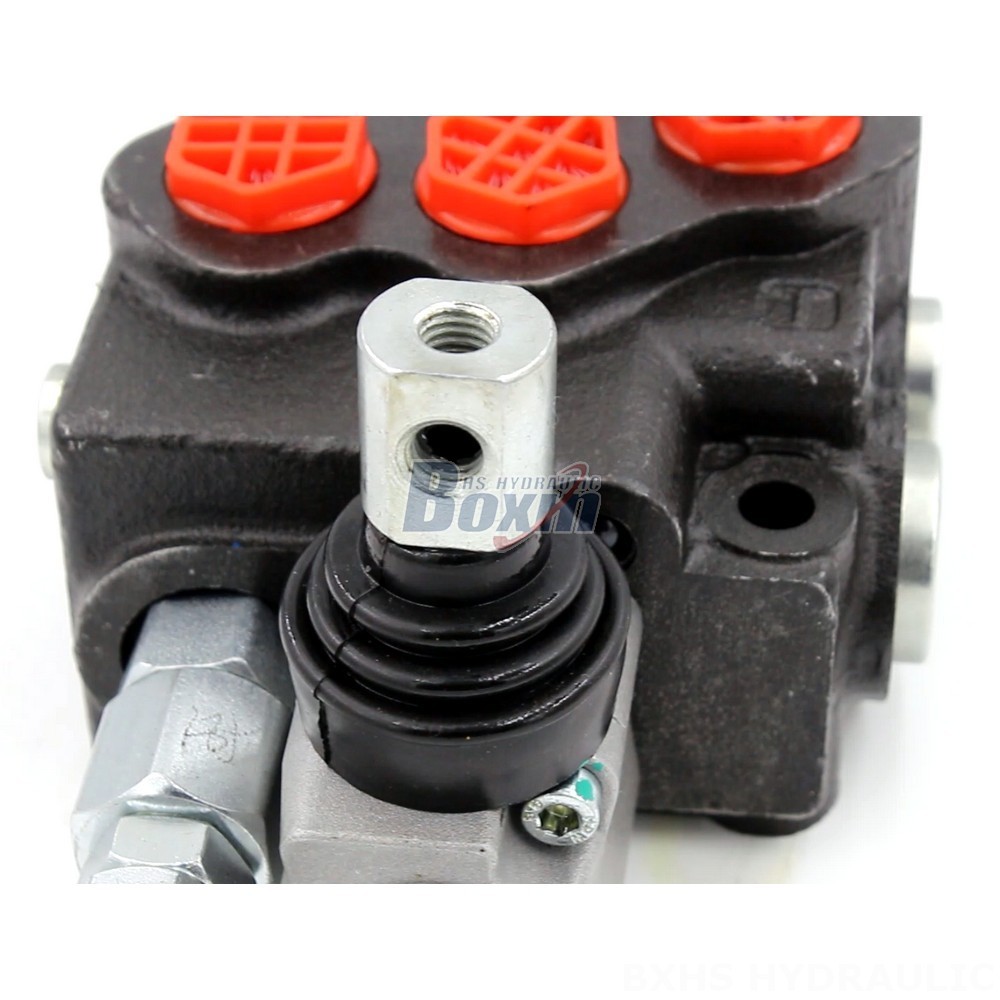

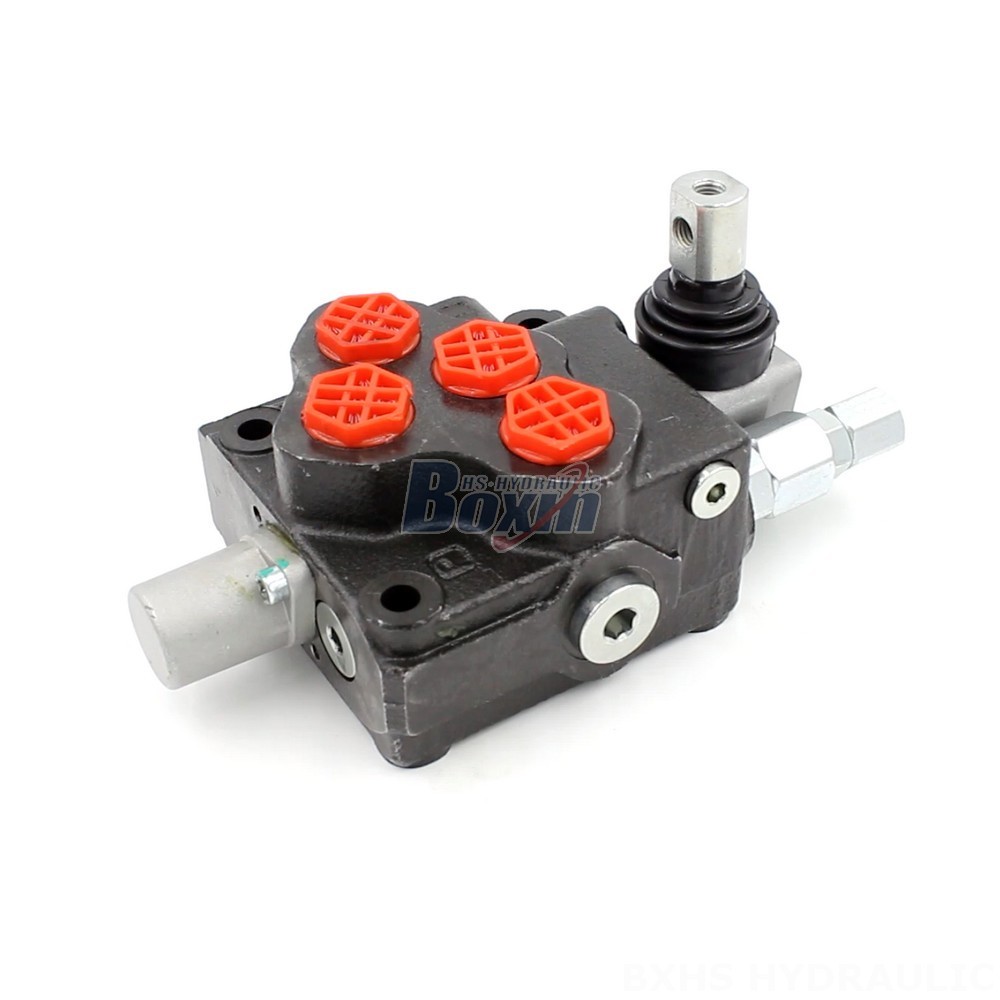

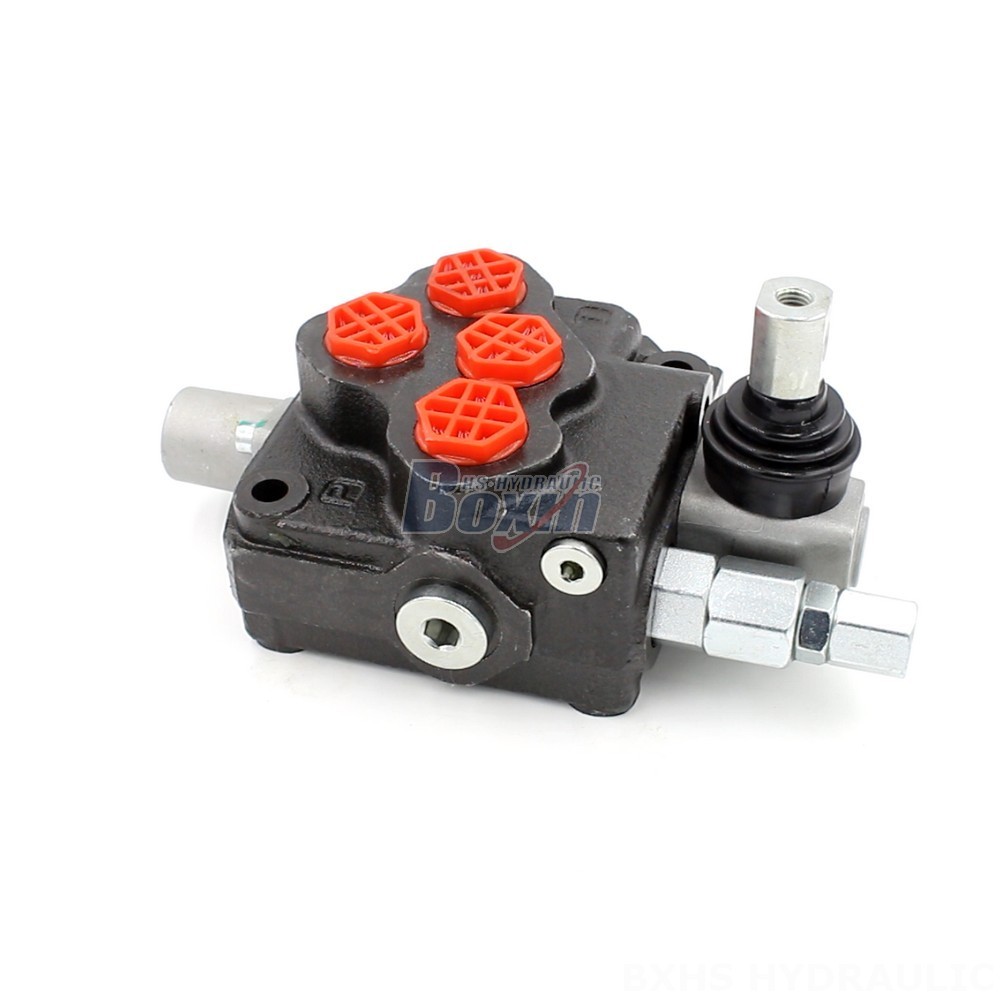

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual valve features a compact monoblock design, a rated flow of 40 L/min, and a maximum pressure rating of 305 bar.
| سجل SD5 صمام اتجاهي أحادي الكتلة بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +60 درجة مئوية (-40 درجة فهرنهايت إلى +140 درجة فهرنهايت) |
| نوع البنية | صمام أحادي الكتلة |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7 |
| نطاق اللزوجة التشغيلية | 15 - 75 مم²/ث (15 سنتيستوك إلى 75 سنتيستوك) |
| معدل التدفق المقنن | 40 لتر/دقيقة (10.5 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 305 بار (4400 رطل لكل بوصة مربعة) |
| منفذ الدخول | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| منفذ الخروج | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| حجم المنفذ | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications. This robust valve features a single spool design, a compact monoblock structure, and a rated flow of 40 L/min. The valve is capable of handling pressures up to 305 bar, making it suitable for demanding applications. It's designed for use in a variety of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. The SD5-G38 is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
