SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

طريقة التحكم:كهروهيدروليكي

الصمام:4 بكرات

معدل التدفق المقنن:90 لتر/دقيقة (23.8 جالون أمريكي في الدقيقة)

أقصى ضغط:315 بار (4600 رطل لكل بوصة مربعة)

منفذ الدخول:G1/2

منفذ الخروج:G3/4

حجم المنفذ:G1/2

العلامة التجارية:BXHS

نوع المنتج:صمام اتجاهي قطاع

سلسلة المنتجات:سلسلة SD8 صمام اتجاهي قطاع

حجم العبوة:40*35*20

الوزن الإجمالي:28.00 kg

التوفر: متوفر بالمخزن

555 شخصاً يشاهدون هذا المنتج

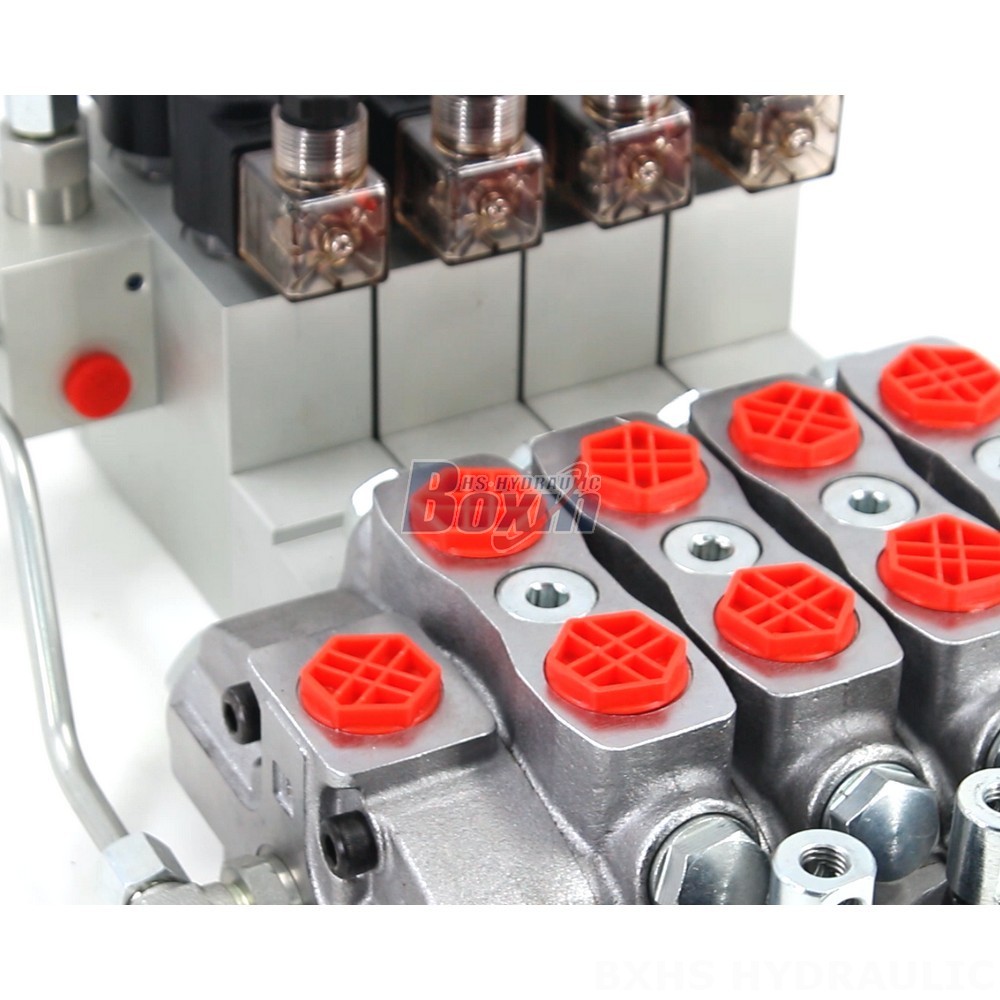

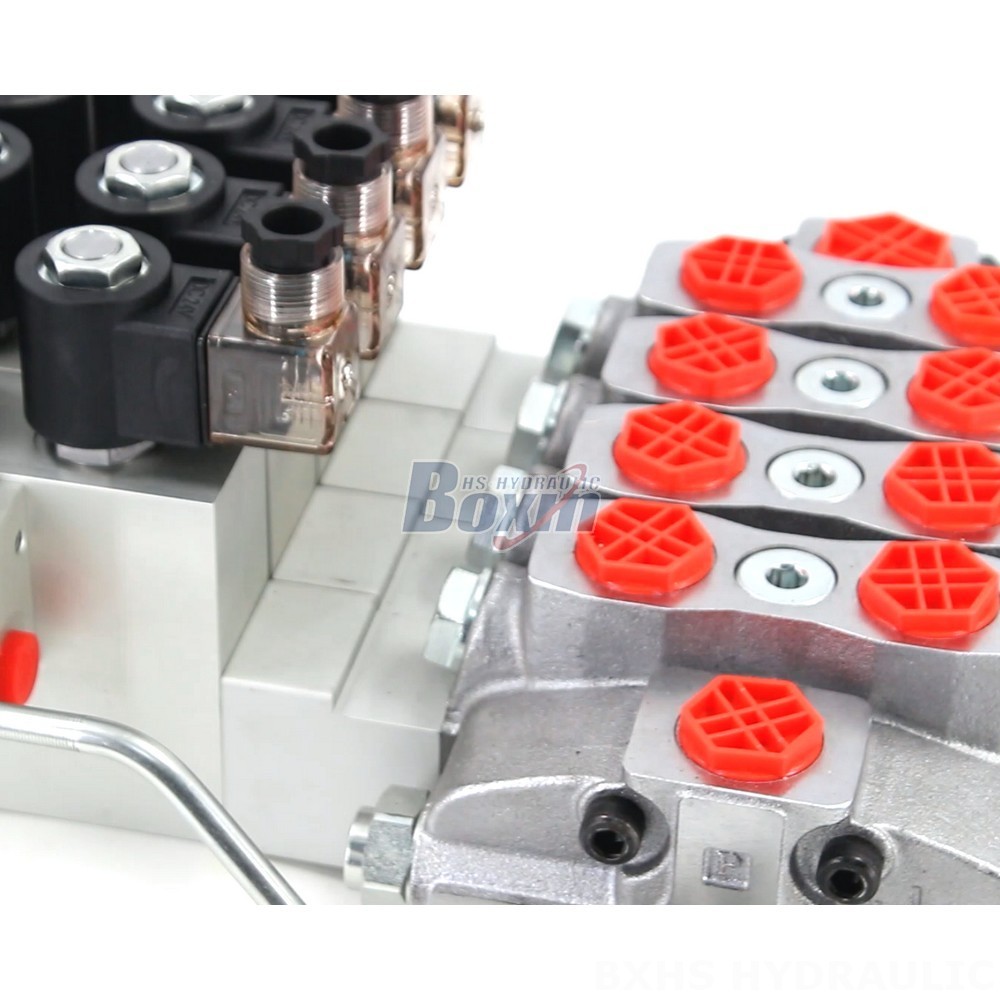

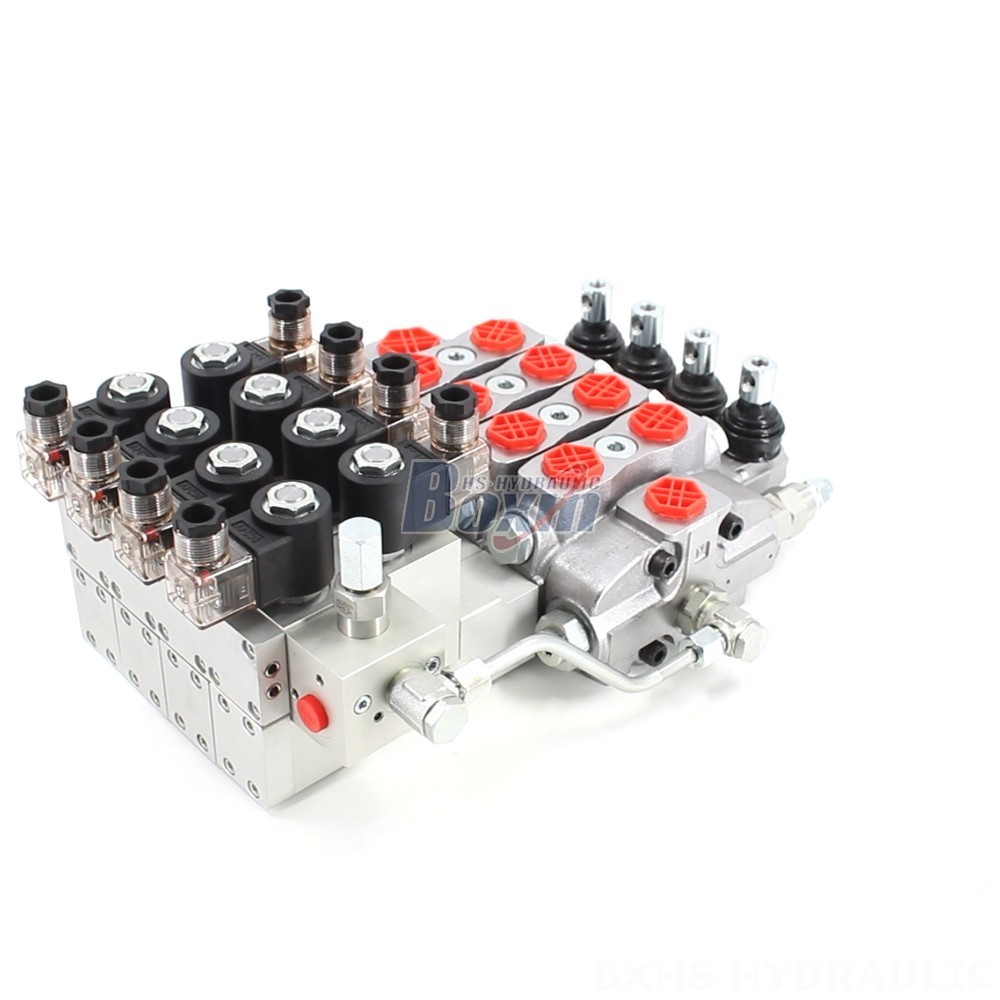

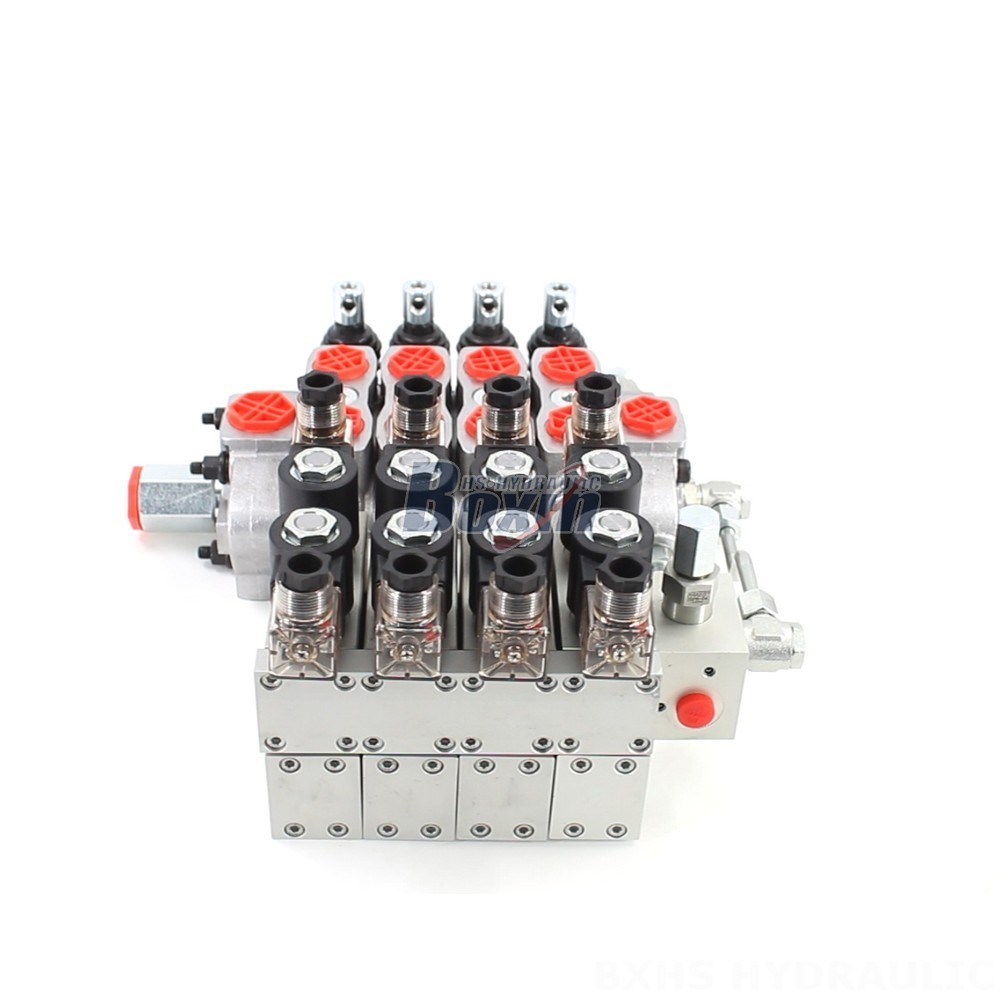

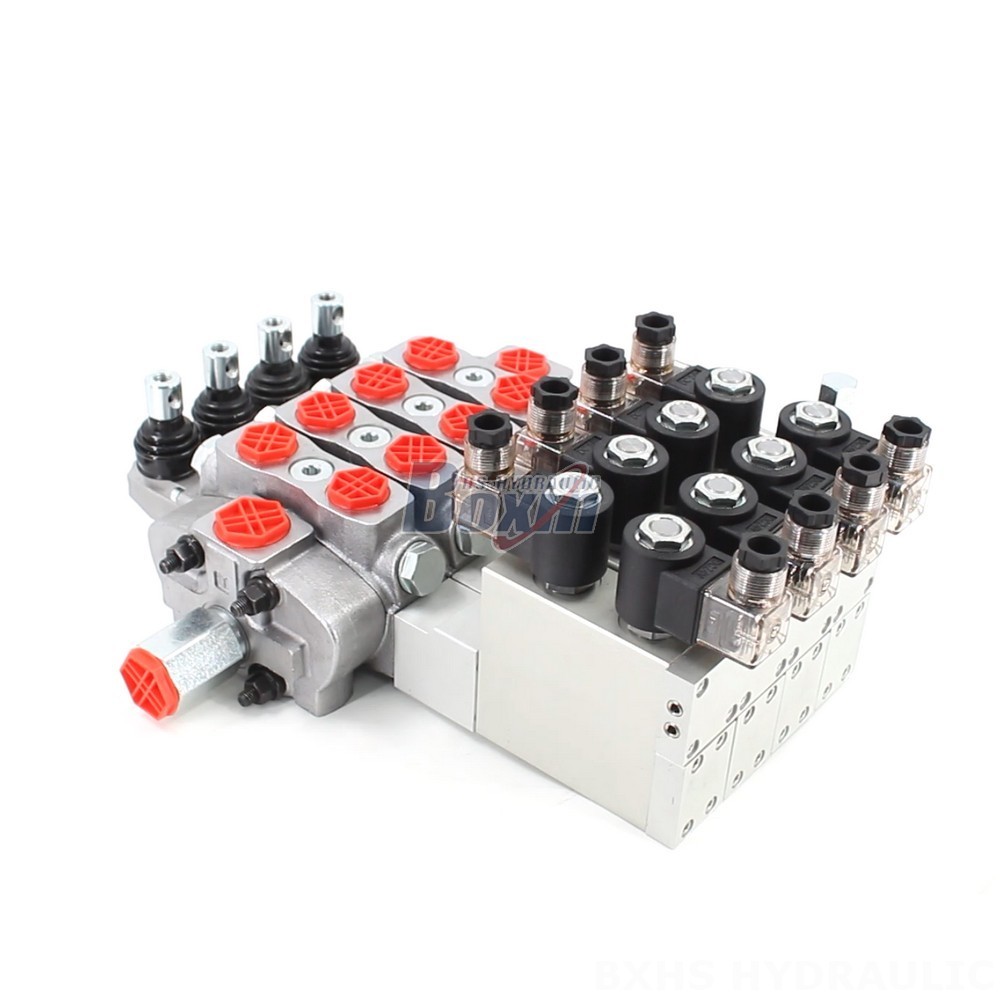

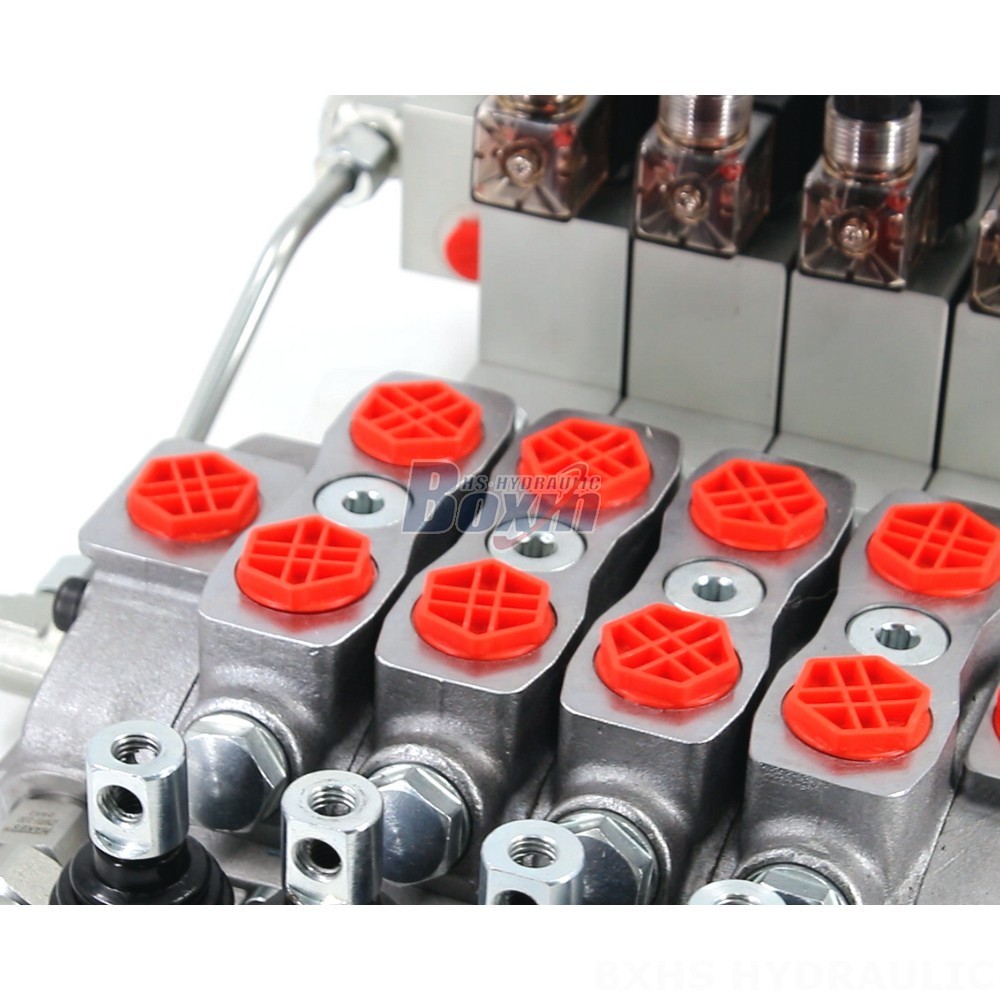

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct drawing image

High-quality SD8-PG2 electro-hydraulic 4-spool sectional directional valve, offering 90 L/min flow rate and 350 bar max pressure. Ideal for material handling, construction, and agricultural applications. Factory direct pricing and OEM/private label options available.

سلسلة SD8 صمام اتجاهي قطاع بارامترات
طريقة التحكم يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم, ملف لولبي وذراع تحكم, يدوي وذراع تحكم, محرك كهربائي
الصمام 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات, 8 بكرات, 9 بكرات, 10 بكرات
نطاق درجة الحرارة المحيطة -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت)
نوع البنية صمام مقطعي
المقطع المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7, المقطع 8, المقطع 9, المقطع 10
نطاق اللزوجة التشغيلية 12 - 400 مم²/ث (12 سنتيستوك إلى 400 سنتيستوك)
معدل التدفق المقنن 90 لتر/دقيقة (23.8 جالون أمريكي في الدقيقة)
أقصى ضغط 315 بار (4600 رطل لكل بوصة مربعة)
منفذ الدخول G1/2, G3/4, M22×1.5, SAE 10
منفذ الخروج G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
حجم المنفذ G1/2, M22×1.5, SAE 10

The SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve is a high-performance hydraulic component manufactured by our factory. We offer factory direct pricing, ensuring competitive advantage for our customers. This robust valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), making it suitable for a wide range of applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini-excavators, midi-excavators, harvesters, and balers. This 4-section, electro-hydraulic sectional valve operates reliably within a temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt).

**We are a leading hydraulic product manufacturer offering:**
* **Manufacturing:** High-quality production of the SD8-PG2 and other hydraulic valves.
* **OEM (Original Equipment Manufacturing):** We provide custom designs and manufacturing to meet your specific requirements. Partner with us to integrate our valves seamlessly into your equipment.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and specifications.
* **Customization:** Tailor the valve's specifications to match your unique application needs.
* **Wholesale:** Bulk orders available at competitive factory-direct prices.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access high-quality, reliable hydraulic valves at competitive prices. Contact us today to discuss your needs and explore potential collaborations. We are a factory direct supplier offering competitive pricing, high-quality products, and flexible OEM and private labeling options. Choose a reliable and experienced hydraulic valve manufacturer – choose us.
