Production & Delivery
15-30 Days Production Lead Time

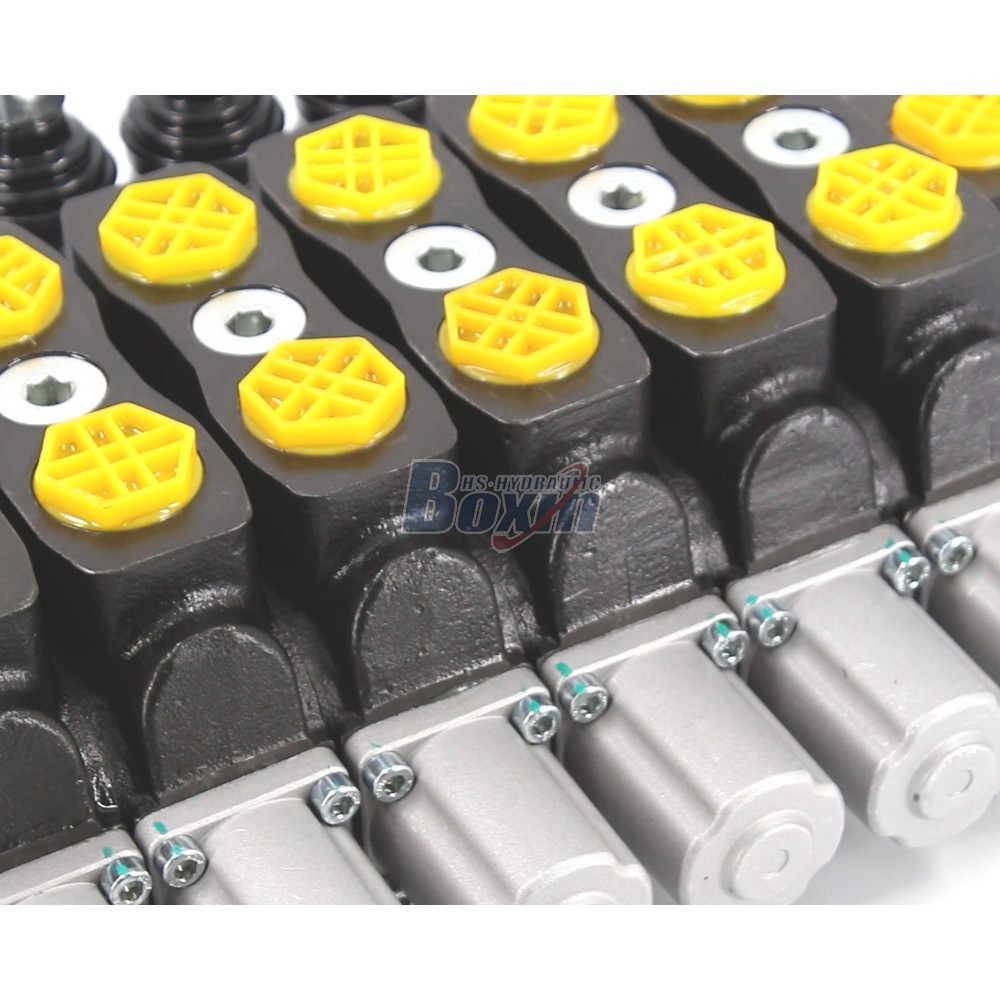

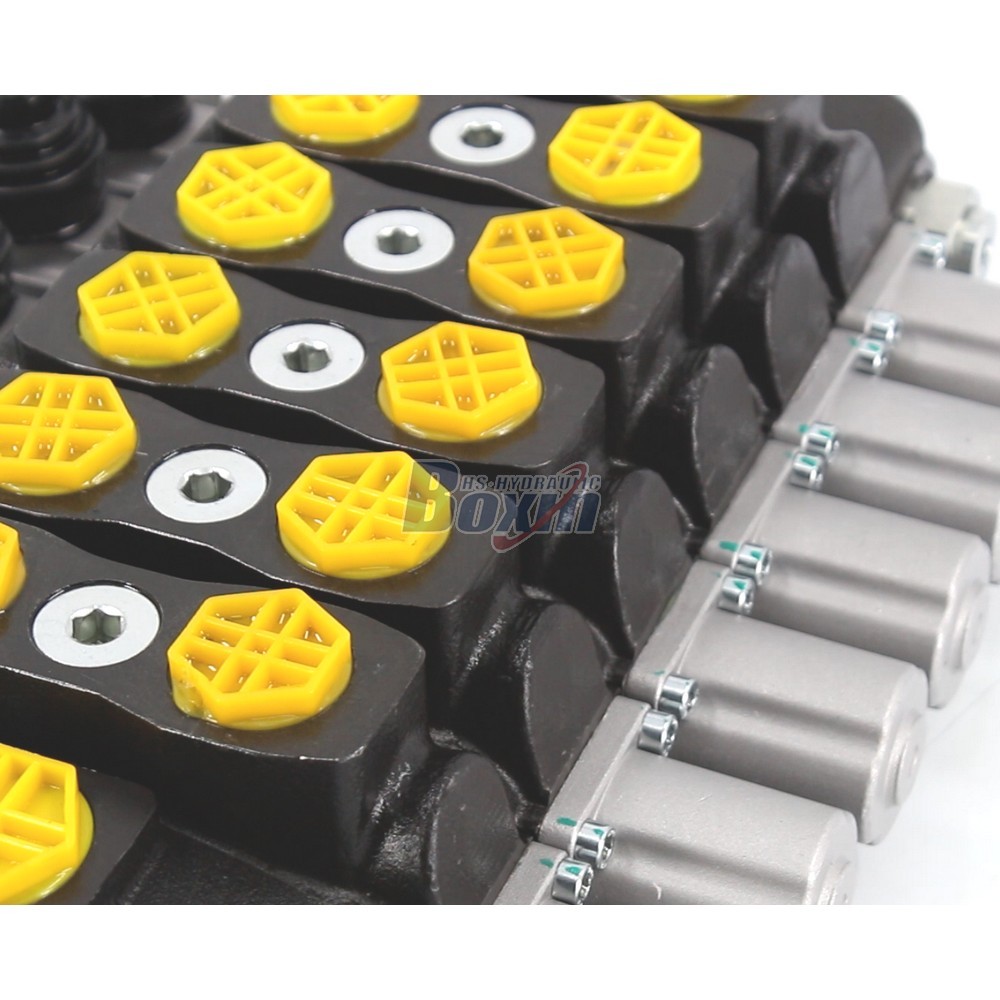

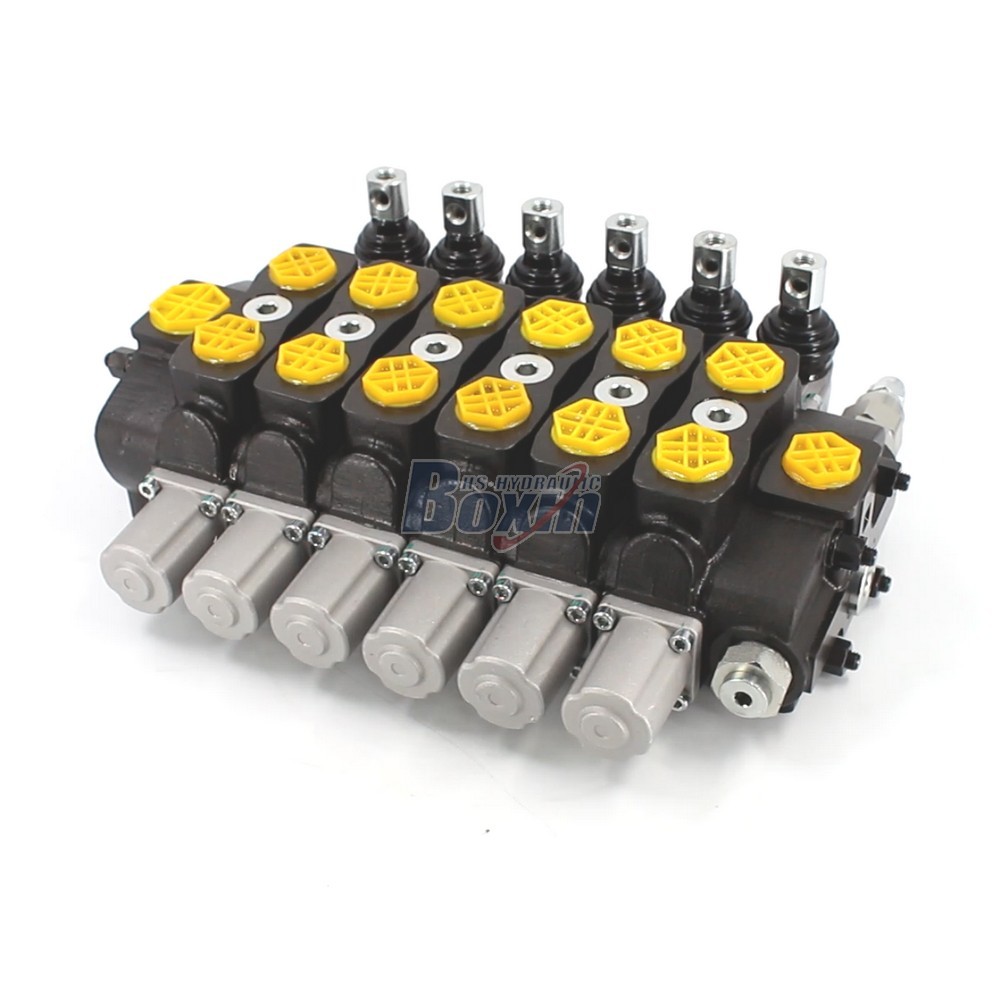

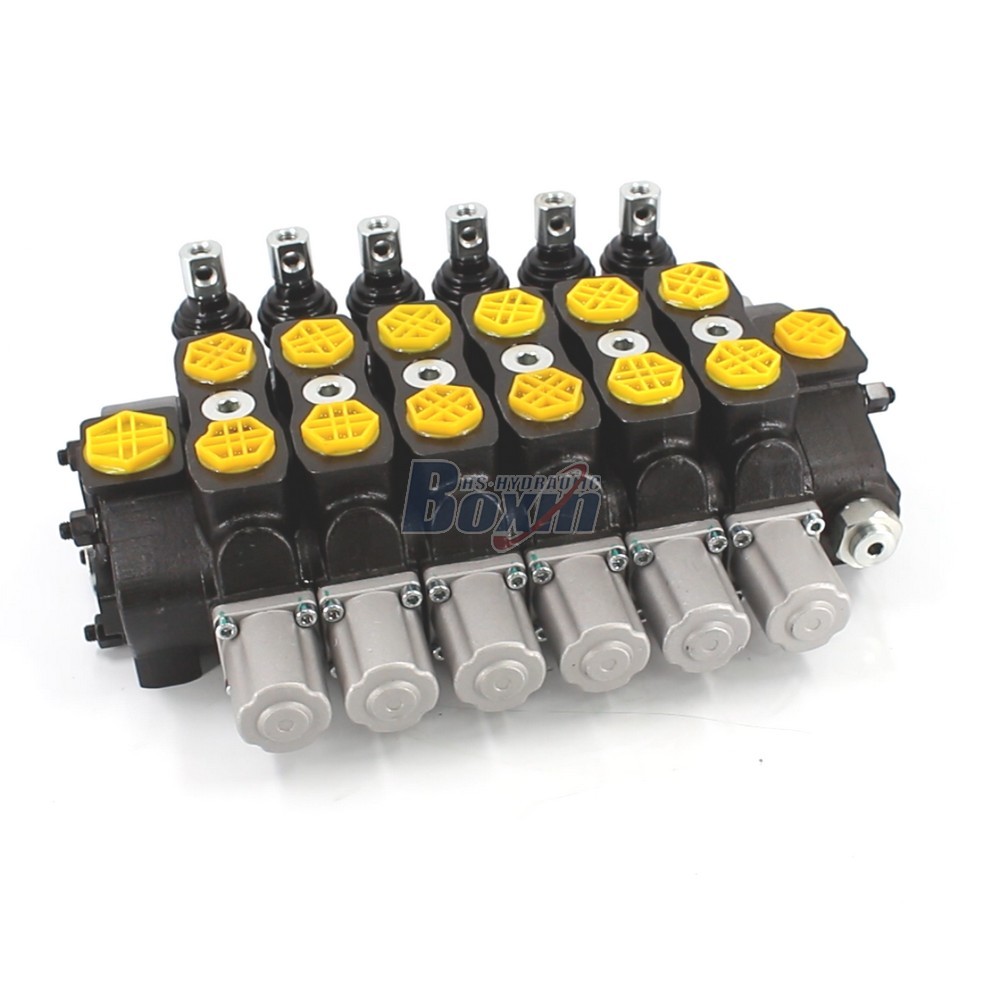

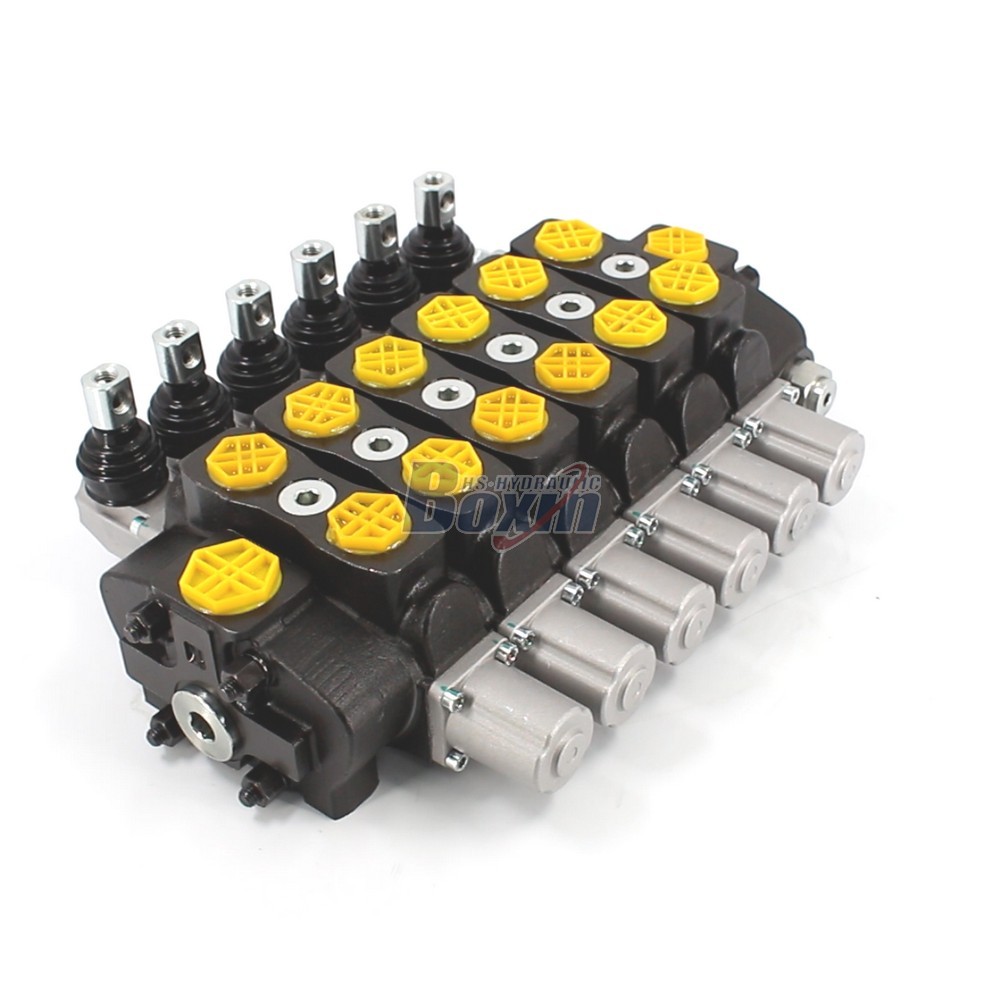

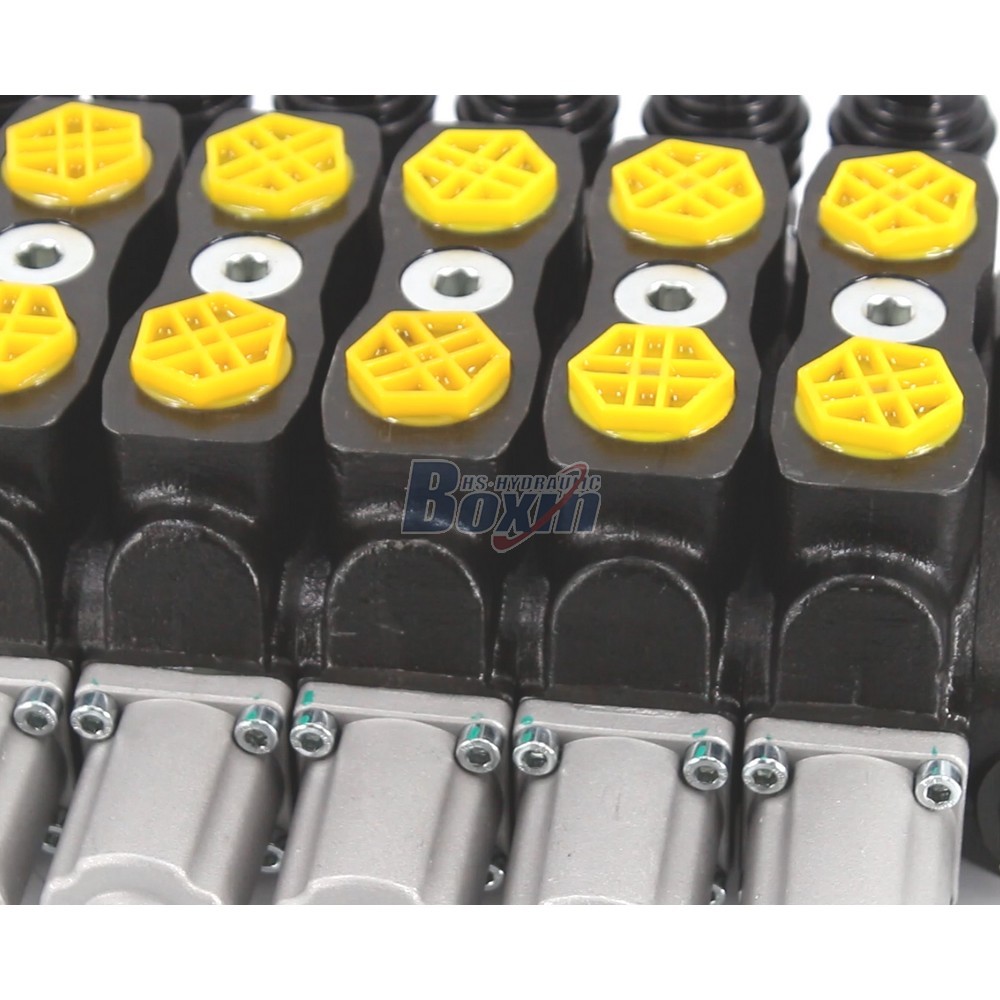

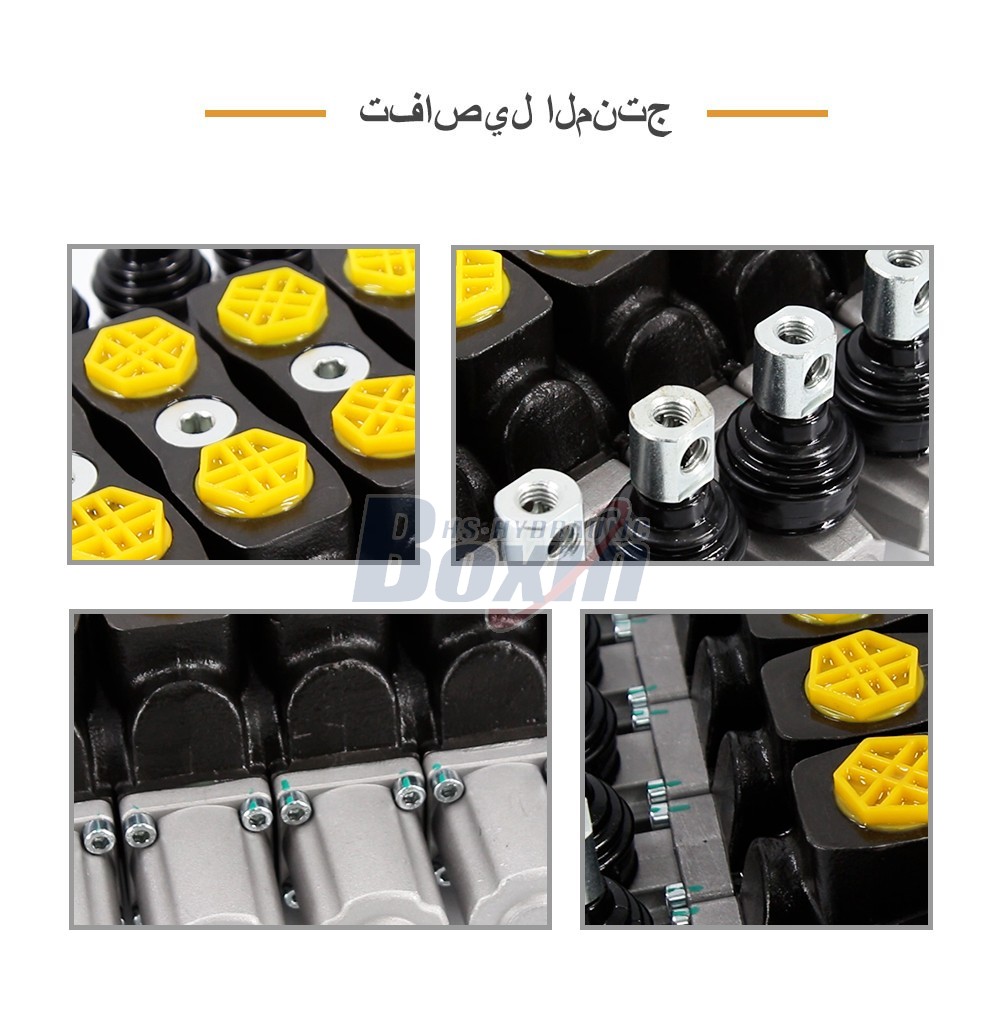

The SD8 Series 6 Spool Hydraulic Sectional Control Valve is a high-performance manual control solution designed for versatile applications. With a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, it provides reliable fluid power management for construction, agriculture, and material handling equipment including excavators and tractors.
| سلسلة SD8 صمام اتجاهي قطاع بارامترات | |
|---|---|
| طريقة التحكم | يدوي, هوائي, كهروهوائي, كهروهيدروليكي, ملف لولبي, هيدروليكي, هيدروليكي ويدوي, كابل, ذراع تحكم, ملف لولبي وذراع تحكم, يدوي وذراع تحكم |
| الصمام | 1 بكرة, 2 بكرة, 3 بكرات, 4 بكرات, 5 بكرات, 6 بكرات, 7 بكرات, 8 بكرات, 9 بكرات, 10 بكرات |
| نطاق درجة الحرارة المحيطة | -40 درجة مئوية إلى +80 درجة مئوية (-40 درجة فهرنهايت إلى +176 درجة فهرنهايت) |
| نوع البنية | صمام مقطعي |
| المقطع | المقطع 1, المقطع 2, المقطع 3, المقطع 4, المقطع 5, المقطع 6, المقطع 7, المقطع 8, المقطع 9, المقطع 10 |
| نطاق اللزوجة التشغيلية | 12 - 400 مم²/ث (12 سنتيستوك إلى 400 سنتيستوك) |
| معدل التدفق المقنن | 90 لتر/دقيقة (23.8 جالون أمريكي في الدقيقة) |
| أقصى ضغط | 315 بار (4600 رطل لكل بوصة مربعة) |
| منفذ الدخول | G1/2, G3/4, SAE 10 |
| منفذ الخروج | G1/2, G3/4, SAE 10, 3/4 NPT |
| حجم المنفذ | G1/2, SAE 10 |
As a leading manufacturer of hydraulic products, we offer the SD8 Series 6 Spool Hydraulic Sectional Control Valve, engineered for precision and durability in demanding environments. This manual valve features a robust sectional design, supporting a rated flow of 80 L/min (21.2 US gpm) and operating pressures up to 315 bar (4600 psi). It is an ideal component for mini-excavators, skid steer loaders, backhoe loaders, wood splitters, and forklifts. Our factory provides comprehensive solutions for global markets, including direct wholesale, OEM manufacturing, and private label (ODM) services. We specialize in customized hydraulic configurations tailored to specific industrial vehicle needs. We are actively seeking long-term partnerships with distributors, wholesalers, regional agents, and international traders. By choosing our factory-direct supply, partners benefit from professional manufacturing standards and consistent product quality across construction and agricultural applications.
